Stack Flexographic Printing Press Machine for Supermarket/T-Shirt/Shopping Bag/ Plastic Bag

Product Description

Stack Flexographic Printing Press Machine for Supermarket/T-Shirt/Shopping Bag/ Plastic Bag
1. Machine Introduction
This machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bag glass
paper and roll paper etc. And it is a kind of ideal printing equipment for producing paper packing bag for food,
supermarket handbag, vest bag and clothes bag, etc.
2. Machine Advantages
1. We use stronger steel plate for machine body, which make machine more stable.
2. Helical gear for whole machines, which make the printing quality more accurate and precise.
3. EPC, which adjust the edge of film or paper.
4. Automatic tension controlling, easy to operate.
5. Longer heating oven, improve the printing speed.
6. Doctor blade, which make the ink more equal. Double doctor blade is optional.
7. Separate ink motor to control the ink roller.
8. Ink pump is optional.
3. Maine Parameters

Model	RLL-6600	RLL-6800	RLL-61000	RLL-61200
Max.width of material	600mm	800mm	1000mm	1200mm
Max.width of printing	550mm	750mm	950mm	1500mm
Material	Plastic film/paper/nonwoven...
Printing colors	6 colors---6+0,5+1,4+2,3+3
Printing length	220-1200mm
Max.machine speed	100m/min
Max.printing speed	70m/min(for plastic)
Constitution of printing	rubber roller,metal anilox roller,printing cylinder,
Principle of work	helical gears
Printing precision	+-0.25mm
Plate thickness	1.7/2.28mm(if different thickness,please note us.)
Machine weight	3000kgs	3500kgs	4000kgs	4500kgs
Main motor power	3kw	3kw	3kw	3kw
Total power	24kw	24kw	26kw	26kw
Machine dimension	4.8*1.6*2.3m	4.8*1.8*2.3m	4.8*2.0*2.3m	4.8*2.2*2.3m
Voltage	3P 380V 50/60HZ

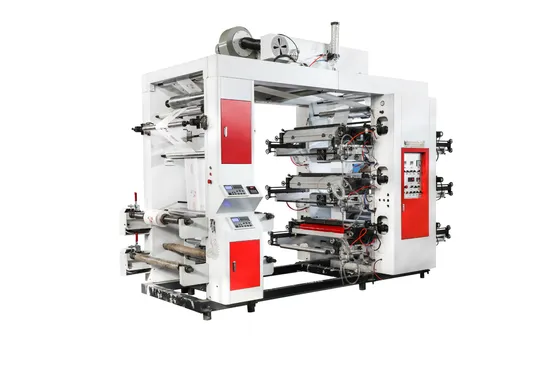

4. Machine Pictures:
5. Printing Samples:

---
