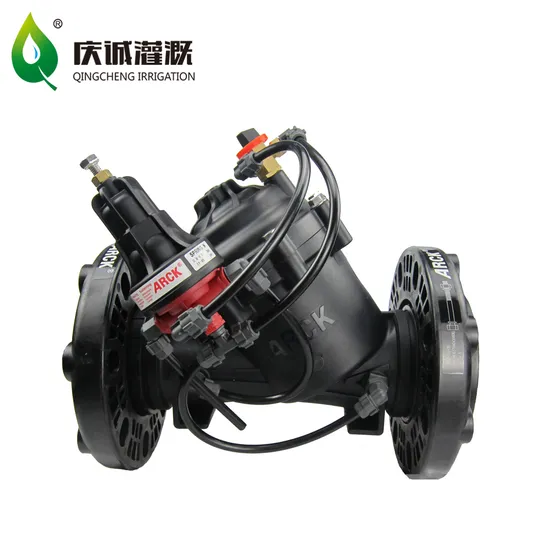

Arck 4" Plastic Solenoid Valve Hydraulic Control Valve with Flange

Product Description

FEATURE & ADVANTAGE
•Diaphragm hydraulic control valve, driven by system pressure,electrical signal control on/off.
•With internal water inlet and outlet circuit. An internal filter unit makes the valve self-cleaning.
•Engineered Plastic Valve with Industrial Grade Design. Highly durable, chemical & cavitation resistant.
•Y-shaped valve body design, large overflow and small head loss.
•Unitized Flexible Super Travel Diaphragm with a Guided Plug.Accurate and stable regulation with smooth closing.
•The external pressure pipeline design can be easily checked and maintained online.
TECHNICAL DATA
•Body design and optional size: 1½″- 6″; DN40-DN150
•Optional connection port:
•Thread connection: Internal thread BSP.T/NPT ( 1½″, 2″, 3″; DN40, DN50, DN80 )
•Flange connection: 3″, 4″, 5″, 6″
•Clamp type interface: 2″or 3″plastic groove adapter interface
•Pressure rating: 10bar; 150psi
•Operating temperature: not higher than 60ºC; 140ºF
•Material:
•Body, bonnet, valve core: glass fiber reinforced nylon
•Diaphragm: Rubber
•Spring: stainless steel
•Sealing gasket: rubber
•Bonnet bolts: Stainless steel
Main Valve Dimensions & Specifications

Sizes	Inch	1½″(Dn40)	2″(Dn50)	3″(Dn80)	3″(Dn80)	4″(Dn100)	5″ (Dn125)	6″(Dn150)
	DN
End Connections		Internal Thread BSP.T/NPT	Internal Thread BSP.T/NPT	Internal Thread BSP.T/NPT	Plastic Flanges	Plastic Flanges	Plastic Flanges	Plastic Flanges
L(mm)		228	232	298	314	342	440	440
H(mm)		146	168	180	224	296	370	388
h(mm)		41	43	55	98	113	129	145

Flow Properties

Sizes	1½″(Dn40)	2″(Dn50)	3″(Dn80)	4″(Dn100)	5″ (Dn125)	6″(Dn150)
KV (m3/h@ ΔP of 1bar)	50	100	100	200	340	340

MANUAL CONTROL VALVE
• The manual control valve is composed of the main valve and the three-way manual control valve. Powered by water with manual control on/off.
• Optional size:1.5″(Dn40),2″(Dn50),3″ (Dn80),4″(Dn100),5″(Dn125),6″(Dn150)
• Connection method: internal thread/flange

MODEL & TECHNICAL DATA
Model	Connection Sizes	Connections	Working Pressure (bar)	Voltage (V)	Carton Size (cm)	Weights (kg)
MV040B	1½″ (Dn40)	internal thread BSP/NPT	0.35-10.0	24V AC or DC or 12-24V DC pulsed	31×24×26.5	2
MV050B	2″ (Dn50)	internal thread BSP/NPT	0.35-10.0	24V AC or DC or 12-24V DC pulsed	31×24×26.5	2
MV080B	3″ (Dn80)	internal thread BSP/NPT	0.35-10.0	24V AC or DC or 12-24V DC pulsed	32×29.5×24	3
MV080F	3″ (Dn80)	flange	0.35-10.0	24V AC or DC or 12-24V DC pulsed	32×29.5×24	4
MV100F	4″ (Dn100)	flange	0.35-10.0	24V AC or DC or 12-24V DC pulsed	35.5×X33×41.5	6
MV125F	5″ (Dn125)	flange	0.35-10.0	24V AC or DC or 12-24V DC pulsed	50×35×50	10
MV150F	6″ (Dn150)	flange	0.35-10.0	24V AC or DC or 12-24V DC pulsed	50×35×50	11

---
