New and Original Eaton Apr48-3G Communication Power Module

Product Description

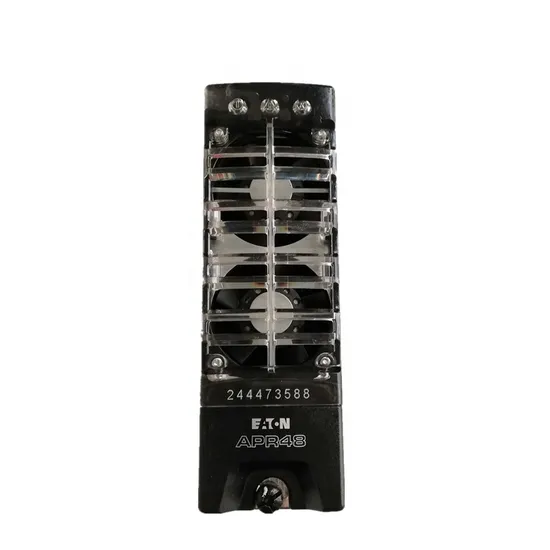

New and Original Eaton APR48-3G Communication Power Module
The Eaton® APR48-3G Access Power Rectifiers are designed specifically for network access applications such as cellular base stations, customer premises equipment and road-side cabinet installations.The new generation 3G architecture is reliable, power dense and compact. The high power density allows as little as 1U of rack space to be occupied by power, therefore, maximizing space available for telco equipment.The APR48-3G rectifier incorporates a combination of leading-edge high frequency switch mode technology for a flexible and efficient DC power source, with high reliability fan cooling which further contributes to its high overall reliability.The APR48-3G is a high powered rectifier with 1800W output. It is designed for operation at up to 70°C (158°F) and under a wide range of AC power conditions.

Specifications

Product	APR48-3G
AC input	100 - 240V ~ ; 50/60Hz
DC output Voltage	48V
DC Output Current	30A
Application	Communication Power Module
Dimensions (H*W*D)	120*250*650mm
Operation temperature	-33 to 55°C
Storage temperature	-40 to 70°C

Description
Eaton APR48-3G Access Power Rectifiers are designed specifically for network access applications such as cellular base stations, customer premises equipment and road-side cabinet installations.
The new generation 3G architecture of the APR48-3G Access Power Rectifier has improved space utilization so rack space can be maximized for use with telco equipment and not power equipment. The APR48-3G size has been reduced by approximately 50% with an increase of power output by 20%, over the previous model. This more than two-fold increase in its power density allows as little as 2U of rack space to be occupied by power.
Operating with the Eaton SC100 or SC200 series of system controllers, the APR48-3G rectifier modules will provide years of cost-effective, and trouble free service for your 48V network access equipment.
FEATURES & BENEFITS
Fast on-line Expansion of rectifiers (hot-swap)
Automatic set-up from system controller
Intelligent microprocessor controlled
Industry leading power density
High efficiency and unity power factor
Wide AC supply conditions
Wide output voltage ranges
Constant power output
Compliance with international standards

---
