US$46.00-52.00
|
1 Piece
(MOQ)
|
Basic Info.
Pressure Resistance
With Pressure Resistance
Anti-jamming
Anti-jamming
Noctilucence
Without Noctilucence
Output
Pulse Signal/0-5VDC/4-20mA/RS485
Working Voltage
5V DC 24VDC 12V DC
Testing Range
0.5m/S~50m/S
Electrical Connection
M12
Environmental Protection
IP65
Working Environment
-20c~+85c Humidity: 95%Rh
Transport Package
Standard Exporting Package
Specification
aluminium alloy
Production Capacity
50000pieces/Month
Packaging & Delivery
Package Size
1.00cm * 1.00cm * 1.00cm
Package Gross Weight
1.000kg
Product Description

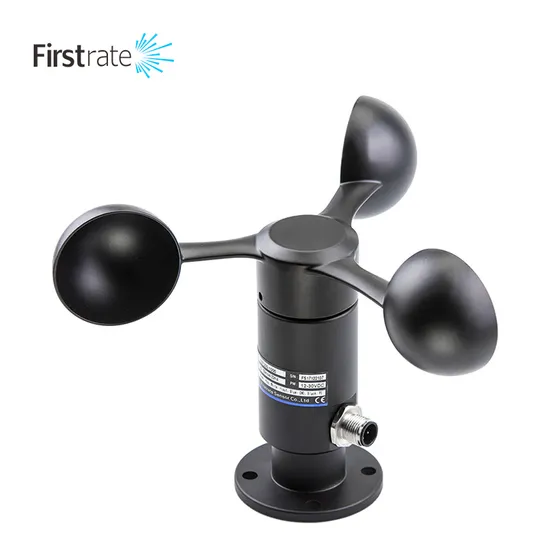

FST200-201 wired and wireless anemometer wind speed meter for crane
Product Parameters
| Measuring range | 0.5~50m/S |
| Output signal | 4~20mA, 0~5V, 0~10V, pulse Modbus485 |
| Supply voltage | 15~30VDC, pulse (5V/24VDC) |
| Precision | ±0.5m/S (<5m/S) ±3%FS (≥5m/S) |
| Starting wind speed | ≤0.5m/s |
| Wind strength | >70m/S 30min |
| Operating temperature | -20~+85ºC |
| Humidity | 0%~95% (Non-condensing) |
| Storage temperature | -40ºC~125ºC |
| Electrostatic protection | 15KV |
| Material | Aluminum alloy/polyester layer Wind cup integrated structure |
| Protection level | IP65 |
| Electrical connections | M12 connector |
Detailed Photos
Application
Packaging & Shipping
Company Information
FAQ Q: Are you manufacturer?
A: Yes, We are professional sensor manufacturer over 50 years! Our technical team has more than 20 engineers.
Q: Can you accept OEM service ?
A: Yes, we can put your company information and logo on our sensors.
Q: Can I be your distributor?
A: Yes, we are looking for distributors in oversea market.
Q: What is your lead time?
A: Normally 7-10days. For quantity above100pcs, need extra 3-5 working days.
Purchase guide
To recommend you the most suitable sensor, please tell us below information.
1. Output: 4-20mA , RS485 or others?
2. Standard cable length is 3m, is it OK for you?
3. Your order quantity ?
>>
