Fiber-Optic Vibration Sensor for Physical Security System

Product Description

Product Description Vibration Optical Fiber Alarm System

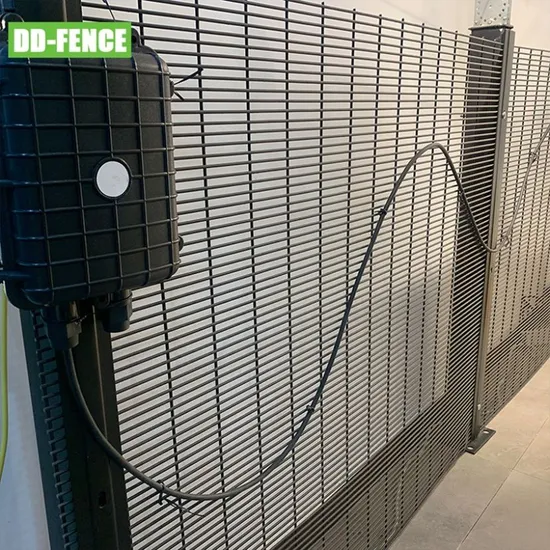

An alarm system that uses vibration to judge intrusion. Its detection element is a long special cable containing electronic components, which can be wound around the fence railings. The vibration of the railings caused by climbing can trigger the detector. The equipment connected with the detector can judge the position, thus giving alarm to the safety watchman.
When intrusion occurs, the system will alarm immediately and locate the alarm position when the cables vibrate slightly by knocking, climbing, trampling, touching, shaking and extrusion.
According to the different practical application environment, the system can be applied not only to various types of surface fences such as iron art, wire mesh fence and other metal fence

Working voltage	12VDC
Alarm response time	<3 s
Warning power consumption	<1W
Length of defense zone	≤1000 meters
Alarm power consumption	<1.5W
Working temperature	-30ºC--70ºC
Communication interface	LAN
Response time	≤2S
Vibrating optical cable interface	FC/APC
Working wavelength	1510-1590nm
MTBF	2000h (Grade C)
Number of equipment defense	zones ≤2
Power surge protection	Electric capacity: 10KA 8/20μs Clamping voltage: 40VDC
Electric shock capacity of linkage relay:	0.2A 110VDC 0.3A 125VAC 0.5A 30VDC
