China Manufacture Complete Poultry Chicken Feed Mill Pellet Plant

Product Description

China Manufacture Complete Poultry Chicken Feed Mill Pellet Plant
1. China Manufacture Complete Poultry Chicken Feed Mill Pellet Plant drawing:
Intensive production of animal feed pellets is of urgent need due to the prosperous breeding industry. Dedicated to providing animal feed pelletizing solutions for 12 years, Qiaoxing Machinery Pellet Mill Machinery is ready to make perfect project for any scale feed pellet plant. The feed pellet production line can be used to make various poultry feed and aquatic feed for rabbits, ducks, cattle, chickens, sheep, pigs, pigeons, fishes and shrimp etc. The whole production line can be control by the automatic PLC control system.
2. Advantages of Feed Pellets:
★Decreased ingredient segregation
★Decreased feed wastage
★Easy storage and transportation
★Improved palatability
★Reduced selective feeding
★Destruction of pathogenic organisms
3. Feed Pellets Processing Technology:
Raw Material → Feed Grinding → Feed Mixing → Feed Pelletizing → Pellet Cooling → Pellet Crushing → Screening & Grading → Pellet Packing
4. Equipment Related to From A to Z .
Feed Grinder →Feed Mixer → Feed Pellet Mill → Counterflow Cooler → Feed Pellets Crumbler → Feed Pellets Grading Sieve → Automatic Weighing and Packing Machine
5. Raw Materials for Feed Pelletizing:
The feed pellets are usually made of corn, brown rice, paddy, sorghum and soybean meal etc.

(1) Raw Material Grinding Process:
The feed grinder can grind the raw material ingredients to the required size. The grind fitness is different of different grinders. We supply four types of feed grinders. The hammer mills are suitable for small-sized or medium-sized feed pelletizing plants. The wide chamber fine grinders and water drop hammer mills are usually used in large-sized and medium-sized feed pelletizing factories. The ultra fine feed grinder is designed for grinding raw materials of special aquatic feed.
(2) Feed Material Mixing Process:
Mixing is considered to be one of the essential operations in feed pellet processing. Lack of proper mixing may lead to reduced diet uniformity, affecting the feed pellet quality. We supply two kinds of high efficiency feed mixers: twin-shaft mixer for mixing powdered or particle materials and screw belt mixer for mixing powdered materials. Both of them can be equipped with atomizing spraying system to add needed liquids, which can improve the feed pellet quality.

(3) Feed Pelletizing Process:
Feed pellet mill is the main equipment of the whole production line. There are two common kind of feed pellet mills: ring die feed pellet mill and flat die feed pellet mill. If you want to produce feed pellets with large quantity, the ring die feed pellet mill is the ideal choice. If your demanded quantity is small, you can choose the flat die feed pellet mill. Also, we supply the aquatic feed pellet mill for pressing fish feed pellets and shrimp feed pellets etc. If you have more question about customized feed pellet production requirement, please feel free toleave message or send email for more support.
(4) Feed Pellet Cooling Process:
The feed pellets pressed out by the feed pellet mill are hot and moist. They can't be crushed, screened or packed immediately. Counterflow feed pellet cooler is designed to cool or dry the feed pellets. It can decrease the temperature and moisture of the feed pellets, preparing for the following processes.

(5) Feed Pellet Crushing Process:
Different poultry, livestock or aquatic feed pellets are with different sizes. Some big ones should be crushed into small ones. Roll type feed pellet crumbler is just the equipment for feed pellet crushing. Double-roll feed pellet crumbler is suitable for crushing poultry feed, such as chicken feed, duck feed and goose feed etc. Three-roll feed pellet crumbler is suitable to crush aquatic feed including fish feed and shrimp feed etc.

(6) Feed Pellet Screening and Grading Process:
The crushed feed pellets are with different sizes, and there may be some powder. Therotary grading sieve can be used to screen and grade the feed pellets. After processing, you can get the qualified feed pellets without fine powder.

(7) Feed Pellet Packing Process:
The feed pellets should be packed for transporting, storing or selling. Automatic weighing and packing machine can weigh and pack the pellets automatically with high accuracy.
(8) Automatic PLC Control System:
With the automatic PLC control system, the production line is with high efficiency and convenient operation.
China Manufacture Complete Poultry Chicken Feed Mill Pellet Plant Main Data:

Model	SZLH320	SZLH350	SZLH400	SZLH420	SZLH508
Capacity	2-5T/H	1.5-8T/H	2-10T/H	3-12T/H	4-20T/H
Main Motor Power	37KW	55KW	75/90KW	110KW	132/160KW
Screw Feeder Power	0.55KW	0.75KW	0.75KW	1.5KW	1.5KW
Conditioner Power	2.2KW	2.2KW	2.2KW	5.5KW	7.5KW
Ring die inner diameter	320mm	350mm	400mm	420mm	508mm
Ring die rotational speed	305PRM	336PRM	307PRM	287PRM	287PRM
Roller outer diameter	140mm	165mm	190mm	206mm	/
Dimension	2300*1000*2100 mm	3200*1100*1700 mm	3200*1300*1900 mm	3500*1300*2800 mm	3500*1500*2900mm

Pellets diameter: 2mm, 3mm, 4mm, 4.5mm, 5mm, 6mm, 8mm, 10mm
Pellets shaping rate: ≥95%
Pellets stability in water: ≥20Min
Noise: ≤86dB(A) ≤90dB(A)
Roller working temperature: ≤85ºC
Steam working pressure: 0.1-0.4Mpa
Steam temperature: 130-150ºC

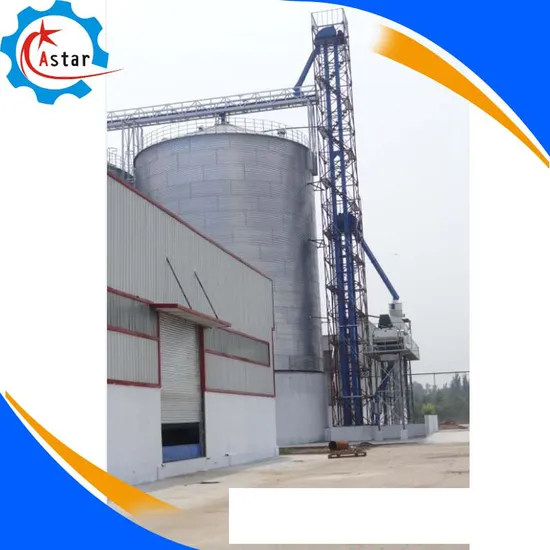

China Manufacture Complete Poultry Chicken Feed Mill Pellet Plant factory site:
China Manufacture Complete Poultry Chicken Feed Mill Pellet Plant Delivery photos:
Any more information you need China Manufacture Complete Poultry Chicken Feed Mill Pellet Plant, please feel free to contact with us.

Mrs. Winni
Chongqing Qiaoxing Machinery & Equipment Company
Website: qiaoxingmachinery.en.made-in-china.com
Add: 4-6-88, No. 319 of Haier Road in Jiangbei District, Chongqing Municipality, Chongqing, China
Mobile :0086-15178920906

---
