Solid Wood CNC Automatic Cutting Saw Optimizing Cut off Saw

Product Description

Product Description

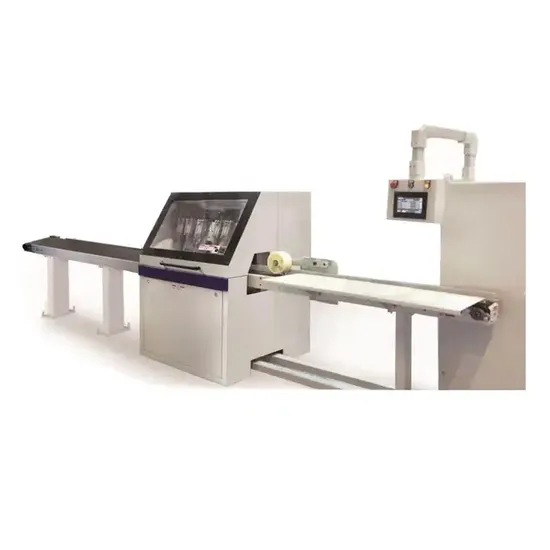

High Speed Automatic Wood Optimizing Docking Cut Off Saw
This machine is heavy duty yet economically priced fault docker with the added benefit of automatic front and rear end trim and up to 10 preset lengths to an accuracy of +/- 1mm. A high feed rate of 150m/min makes this machine suitable for fault docking higher production products such as decking or T&G flooring.

Function & Specification

Cut-off scarring and defect ,and cut for fixed lengths.
Through the automatic optimizing ,the timber value incresed by at lease 5%.
Especially for the manufacturing mode of "several orders with small quantity "
To remove the scars and defects as well as cut off the timber with setup lengths
Special for the customer with solid wood deep processing requirment,such as furniture company ,sofa factory and sollid wood laminated factoy,etc.

Model	Speed200
Cutting length	Min.400mm
Cutting width	30-150mm
Cutting thickness	20-60mm
Cutting section area	150*60mm
Rear saw length	Fixed80mm
Saw blade diameter	450mm
Feeding method	Conveyor belt
Feeding speed(Infiniteadjustable)	0-50m/min(Working) 100m/min(Emptyload)
Cutting tolerance	±0.5-±1.5mm
Cutting speed	0.15-0.3s
Air pressure	0.8Mpa
Machine power	18kw
Voltage	380v50hz3phase
Dust collection port	2pc*120mm
Discharge pusher	1pc
Machine length	About 8m
Optimizing functions	With 1 optimizing function,Dead knot cutting optimizing
Cutting size list	4 fixed lengths per group,1group.
Software	Optimizing cross cut saw with built-in blowing-off device for waste. Install with Maxcut software.With TFT color display 8" and touch screen.

Optimizing Function

Related Products

Finger joint machine Solidwood bending machine

Package and Delivery

Warranty and After Service

1.One year guarantee from the delivery date of this machine under the normal operation of one shift per day 2.We will be responsible for the maintenance of damaged parts which is under normalsituation during warranty period, and all the round -trip courier transportation cost of damaged/repaired replacement parts in warranty period should be bornd by the buyer.Wearing parts are not included. 3.24 Hour technicial support by email or calling User-friendly Englishi manual for machine using and maintaining.

---
