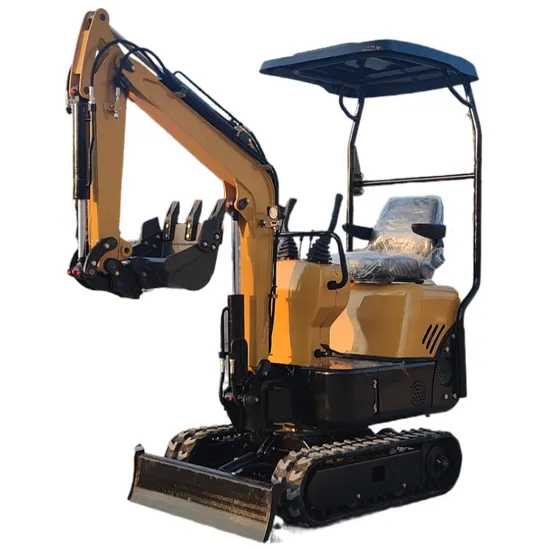

| Number | MODEL | WM10(Euro 5) |
| 1 | Operating weight (kg) | 1000KG |
| 2 | Bucket capacity (cbm) | 0.025 |
| 3 | Engine model | KOOP KD192F-1 |
| 4 | Rated power (kw/r/min) | 7.0/3000 |
| 5 | Hydraulic pump model | China Brand |
| 6 | Max.flow (L/min) | 18 |
| 7 | Working pressure (Mpa) | 17 |
| 8 | Control valve model | China Brand |
| 9 | Swing motor model | RMR-315 |
| 10 | Travel motor model | R6K-310 |
| 11 | Fuel tank capacity (L) | 7 |
| 12 | Hydraulic oil tank capacity (L) | 17 |
| 13 | Travel speed (km/h) | 1.9 |
| 14 | Swing speed (r/min) | 13 |
| 15 | Max. climbing degree (%) | 58 |
| 16 | Arm digging force(KN) | 10.2 |
| 17 | Bucket digging force (KN) | 14.8 |
| 18 | Average grounding pressure (Kpa) | 28 |
| 19 | A-Overall length (mm) | 2949 |
| 20 | B-Overall width (mm) | 930 |
| 21 | C-Overall height (to top of boom)(mm) | 1095 |
| 22 | D-Overall height (to top of cab)(mm) | 2219 |
| 23 | E-Counterweight ground clearance(mm) | 362 |
| 24 | F-Min. ground clearance (mm) | 134 |
| 25 | G-Tail swing radius (mm) | 834 |
| 26 | H-Track Ground Length (mm) | 900 |
| 27 | J-Track length (mm) | 1233 |
| 28 | K-Track gauge (mm) | 740 |
| 29 | L-Track width (mm) | 920 |
| 30 | M-Track shoe width (mm) | 180 |
| 31 | N-Turntable width (mm) | 917 |
| 32 | O-Max. digging height (mm) | 2637 |
| 33 | P-Max. dumping height (mm) | 1784 |
| 34 | Q-Max. digging depth (mm) | 1681 |
| 35 | R-Max. vertical wall digging depth (mm) | 1569 |
| 36 | T-Max. digging reach (mm) | 3084 |
| 37 | U-Max. digging reach at ground level (mm) | 3003 |
| 38 | V-Min. swing radius (mm) | 1390 |
| 39 | X-Distance between center of rotation and tail length (mm) | 833 |
| 40 | Z-Height of counterweight | 530 |
| 41 | A1-Ground length (in transportion)(mm) | 2348 |
| 42 | Arm length (mm) | 798 |
| 43 | Boom length (mm) | 1480 |
-- About 10-15days after getting the deposit money from client;*What is the payment terms?-- T/T. 50% deposit in advance and 50% balance before shipment;*How about the shipment method?-- Normally, we will make plywood case with steel frame packing to pack and do LCL shipment;
* How about your quality control?--We have engaged in this field for many years, now we have our own brand and have passed the EU CE certification, the quality is ensured.* How about your warranty and after-sale service?---The warranty for the tractor is 1 year, if any part broken within one year, we will send the parts to client by express.
