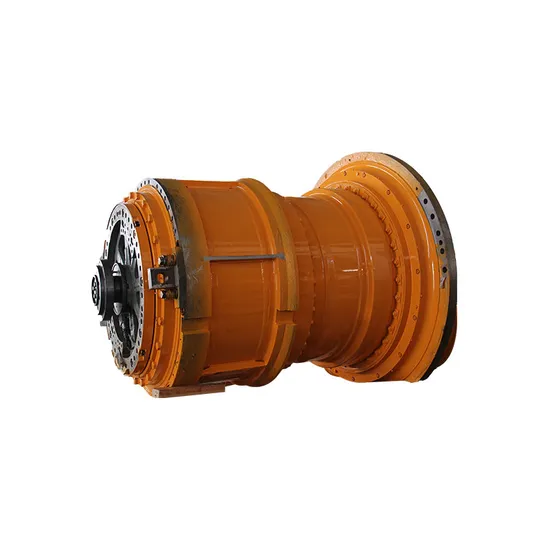

off-Highway Vehicle Planetary Gear with 5000kg Truck Wheel Hub Assembly

Product Description

Product Introduction Brief Introduction:
NW230Discover the remarkable engineering of our wheel side reducer, which boasts a pioneering sun wheel design flanked by three meticulously aligned small rows, delivering precision and excellence.Star Double ToothThis state-of-the-art configuration harmonizes wheels with a torsion tube, creating an integrated system that expertly combines both internal and external meshing, setting new standards in efficiency and performance.NWCelebrate the outstanding craftsmanship of our planetary gear transmission reduction mechanism, renowned for its exceptional engineering and reliability.
Structural Features:
1.The sun wheel is a marvel of engineering, designed to float gracefully. One end is precision-connected to the motor shaft by a spline, while the other end achieves perfect automatic positioning through its precise engagement with three sizable planetary wheels. These wheels are strategically distributed around the circumference, ensuring flawless meshing backlash and ideal tooth top clearance.
2.The design is robust and dynamic, featuring three twin large planetary wheels that are powerfully driven by the sun wheel. These twin wheels are expertly mounted on frame bearings and mesh seamlessly with the torque tube's internal teeth on the opposite end. The torsion tube integrates effortlessly with the hub, forming a unified structure, empowering the hub's two centripetal thrust bearings to rotate smoothly and efficiently around the frame.
3.Our hub is crafted with precision, offering a steadfast mounting surface for the tire. Ingeniously designed, the solar wheel shaft floats when encountering radial force, guaranteeing precise planetary gear transmission within the gearbox. This floating action under operational conditions ensures equitable load distribution across the planetary transmission, dramatically enhancing the gearbox's lifespan and reliability.
Product Parameters

serial number	parameter	Performance requirements	unit
1	Reduction ratio	31.875:1	-
2	Rated output torque	625000	Nm
3	Rated input torque	20000	Nm
4	Maximum output torque	1100000	Nm
5	Maximum input torque	35000	Nm
6	Maximum output speed	100	r/min
7	Maximum input speed	3187.5	r/min
8	Static load capacity	1300	kN
9	Dynamic load carrying capacity	3900	kN
