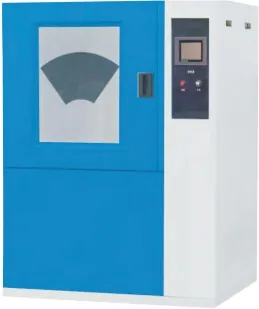

Sand and Dust Testing Chamber Environmental Test Equipment Dust-Proof Analyze Tester

Product Description

Sand and Dust Testing Chamber Environmental Test Equipment Dust-Proof Analyze Tester Product Description This equipment is driven by a high-power fan to a certain concentration of sand and dust to a certain. The flow rate blows through the test. The surface of the sample, so as to evaluate the exposure of these test samples (equipment) to dry sand or full of ash soil. The ability and defense against the penetration effect of dust particles under the action of the atmosphere mold erosion or blockage of sand. The ability of the effect and the ability to store and circle; simulation at the same time low concentration and low wind speed dusty environment. Suitable for electrical and electronic products, automobiles and motorcycles pieces and seals are in the sand. The test of preventing sand and dust from entering the shell of the sealed box in a dusty environment. To inspect electronic and electrical products, automobile and motorcycle parts and seals are used in sand and dust environments, the nature of storage and transportation. This product is strictly in accordance with China National Standard./T2423.37-2006 test large size: sand and dust test method, 7000 GB.0-2007 lamp shell protection,GB 12085.6- 89 and other corresponding national standards design and manufacture of quasi-technical parameters, simulate dust environment test.

Model	MSDT-512	MSDT-800	MSDT-1000	MSDT-1500
L*W*H(cm)	800*800*800	800*1000*100	1000*1000*1000	1000*1500*1000
Studio temperature	RT+10ºC-80ºC adjustable
Temperature uniformity	≤±3
Studio humidity	≤30%RH
Composition of dust blowing test	Silicon dioxide with a content of 97-99% (angular silica powder)
Composition and size of sand and dust particles in dust blowing test	75%45um, 15%75um, 8%106um, 2%150um
Blowing dust concentration	10.6±7g/m³
Wind speed for blowing dust	8.9m/s±1.2m/s
Time control	Automatic timing control, timing accuracy 1min
Spray method	Stainless steel with internal steel pipe connection

Note: Support customization
