Factory Price High Precision Universal Turret Milling Machine CNC Turret Milling Machine

Product Description

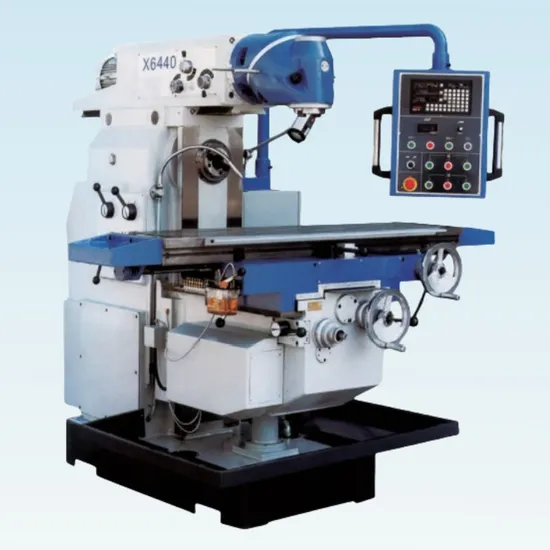

Product Picture
Specification Parameter

Specification	Unit	UF800(X6440)
Spindle taper		ISO50(Vertical,horizontal)
Distance from vertical spindle to table	mm	200-620
Distance from vertical spindle to column	mm	400-1000
Distance from horizontal spindie to table	mm	0-420
Spindle speed range	rpm	60-1750(vertical)35-1500(horizontal)
Worktable size	mm	1700*400
T-slot of tablo(No./Width/Distance)		5/18/70
Distance from horizontal spindle to arm	mm	210
Max. worktable travel	mm	1000*300*420
Worktable X, Y axes power feed	mm/min	40-1000(Ouick feed)1800
Worktable Z axis power feed	mm/min	10-250(Quick feed) 450
Main motor power	kw	4(Vertical) 7.5(horizontal)
Worktable X, Y, Z axes servo motor power	kw	2.4
Coolant pump motor power	W	90
Flowing of coolant pump	1/min	25
N .W./G.W.	kg	3500/3700
Overall dimensions(L x W x H)	mm	2200*2250*2250

Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.

Exhibition Photos
Certificate
Packing&Shipping
FAQ

---
