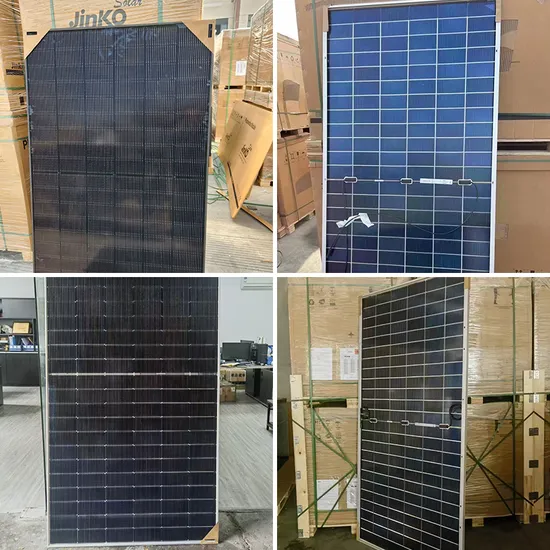

Product Description Europe Stock Jinko Tiger Neo Jkm440n-54hl4r-B 420W 430W 440W All Black Solar Panel for Home System SMBB Technology Better light trapping and current collection to improve module power output and reliability. Hot 2.0 Technology The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID. PID Rsisitance Excellent Anti-PID performance guarantee via optimized mass-production process and materials control. Enhanced Mechanical Loal Excellent Anti-PID performance guarantee via optimized mass-production process and materials control. Durability Against Extreme Environmental Conditions High Salt mist and ammonia resistance.
| Model | JKM420N-54HL4R-B | JKM425N-54HL4R-B | JKM430N-54HL4R-B | JKM435N-54HL4R-B | JKM440N-54HL4R-B |
| Peak Power Watt- Pmax (W) | 420 | 425 | 430 | 435 | 440 |
| Maximum Power Voltage- Vmpp (V) | 32.16 | 32.37 | 32.58 | 32.78 | 32.99 |
| Maximum Power Current- Impp (A) | 13.06 | 13.13 | 13.20 | 13.27 | 13.34 |
| Open Circuit Voltage- Voc (V) | 38.74 | 38.95 | 39.16 | 39.36 | 39.57 |
| Short Circuit Current- Isc (A) | 13.51 | 13.58 | 13.65 | 13.72 | 13.80 |
| Module Efficiency (%) | 21.02 | 21.27 | 21.52 | 21.77 | 22.02 |
| Power Output Tolerance (W) | 0 ~ +5 |
| STC | Irradiance 1000W/m², Cell temperature 25ºC, Air Mass AM1.5 |
| Operational Temperature | -40~+85ºC |
| Maximum System Voltage | 1000V DC(IEC/UL) |
| Max Series Fuse Rating | 25A |
| Temperature Coefficient of Pmax | -0.29%/ºC |
| Temperature Coefficient of Voc | -0.250%/ºC |
| Temperature Coefficient of Isc | +0.045%/ºC |
