Chinese Cheap Automatic Pressure and Vacuum Forming Machine

US$89,000.00-138,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
LX3122HF-IM-C305
Molding Method
Pressing
Automatic Grade
Automatic
Forming Area
800mm*600mm Max./750*400mm Max.
Forming Depth
120mm Max. /180mmmax.
Dry Run Speed
40cycles/Min Max.
Film Thickness
0.2-2mm
Sheet Width
800mm Max.
Suitable Material
PP PS Pet PVC BOPS
Air Pressure
0.7MPa
Production Range
Container, Clamshell ,Tray and Lid
Automaticity
Forming, Cutting, Stacking and Conveying
Cooling Water Consumption
13 Liters/Min 15° - 20°c
Transport Package
Plastic Film with Anti-Rust Oil
Specification
1200*2600*2500mm
Trademark
LXPLASTICS
Origin
China
HS Code
8477409000
Production Capacity
20sets/Year

Product Description

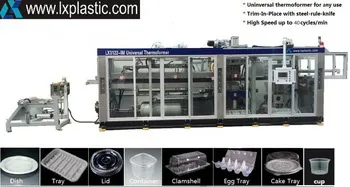

BRIEFHF-IM cheap vacuum forming machine is a trim-in-place type thermoforming machine which takes advantage of mould with rules steel knife for performing forming and cutting in the same station. and the second and the third cut-station are available for performing fuction of post-trim and hole-punch.

it is perfect for making part of PP PET PS etc and completely automatically produces disposable rectangular or square or round shaped roll-edged containers and trays with forming, trimming, and stacking conveying on one operation cycle.

Design Featurecheap vacuum forming machine Use Steel-Rule-knife for performing forming and cutting in the same station
Trim-in-place for processing PP PET PS PVC BOPS material etc. specially perfect for PP .
Second cut-press and Third cut-press are available for hole punching and post-trim
Automatic stacking ,counting unit and conveying system
Trim-in-place for parts with rolled edge (turn-down lip)
Technology of trim-in-place brings a neat and identical trimming(cutting)
Plug assistant for deep forming of draw
Floating knife and free knife are available for post-trimming film with high shrinkage rate.
Extra Contact Heat plate for Minimizing power consumption is available.
Specification LX3122IM
Mould Area 800*600mm Max
Depth of Draw under sheet 120 mm Max
Depth of Draw above sheet 30mm Max/120mm Max
Clamping force 750KN
The Second Cut-Press Available
The third Cut-Press Available
Suitable material PP PET PS PVC BOPS
Sheet Width 460- 850 mm
Material Thickness Range 0.2-1.5mm
Material Roll Diameter 1000 Max
Dry run Speed 45cycles/min Max.
Power Supply 3-N AC380V±15V ,(others at request)
Power Consumption Approx.35kilowatts/hr
Air Pressure 0.7Mpa
Air Consumption 2500 Liters/min
Cooling Water Consumption 13 Liters/min 15° - 20°C
Dimensions 9.5m*2.2m*2.2(L*W*H)


Trim-in-place IM-2in1

Trim-in-place with second cut-press IM-3in1 (optional)


Trim-in-place with second cut-press and third cut-press IM-4in1 (optional)
