Fast Fixed Mars PRO Laser Rtk Sino Comnav Lu5 1668 Channels Laser Rtk Gnss

Product Description

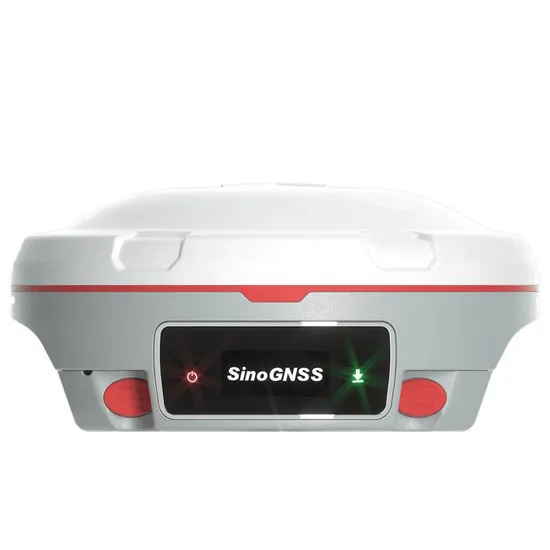

Product Description The Mars Laser RTK is an innovative GNSS receiver that integrates the most advanced GNSS, IMU, and laser technologies. It melds GNSS receiver and laser technology, shattering usual constraints in land survey, construction, and GIS applications. It ensures precision and minimizes user fatigue, crafting an impressive surveying experience. With this state-of-the-art RTK module, Mars Laser RTK will perform at its highest levels, making it the best choice for surveyors.
Specifications

Pormance	Channels	1668
	GPS	L1C/A, L1C, L2P, L2C, L5
	BDS	B1I, B2I, B3I,B1C,B2a,B2b
	GLONASS	G1, G2, G3
	Galileo	E1, E5a, E5b, E6c, E5 AltBOC
	QZSS	L1C/A, L2C, L5, L1C
	IRNSS	L5
	SBAS	L1C/A
	Signal Re-acquisition	≤1s
	RTK Initialization Time	<10s (Baseline≤10km)
	Static and Fast Static	Horizontal 2.5 mm + 0.5 ppm RMS Vertical 5 mm + 0.5 ppm RMS
	Signal Baseline RTK	Horizontal 8 mm + 1 ppm RMS Vertical 15 mm + 1 ppm RMS
	DGPS	<0.4m RMS
	SBAS	Horizontal 0.5m RMS Vertical 0.8m RMS
	Standalone	1.5m 3D RMS
	Laser Tilt Measurement	≤5.5cm (5m range,≤60°Tilt in Laser mode)
Physical	Dimension	Φ15.5cm x 7.3cm
	Weight	1.2kg with two batteries
	Working Temperature	-40ºC~+65ºC (-40°F to 149°F)
	Storage Temperature	-40ºC~+85ºC (-40°F to 185°F)
	Humidity	100% non-condensing
	Waterproof and Dustproof	IP67
	Shock	Survive a 2m drop onto the concrete
	Voltage	7-28VDC
	Power Consumption	1.8W
	Li-ion battery capacity	2 x 3400 mAh
	Memory	32 GB
	Battery life	20h
Communication	1 Serial port (7 pin Lemo)	Baud rates up to 921,600 bps
	Enhanced UHF modem	- Full frequency range: 410-470 MHz2
		- Transmit power: 0.5-2 W adjustable
		Range:3-5km
	WIFI/4G modem	- LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
		- LTE-TDD:B38/B39/B40/B41
		- WCDMA: B1/B2/B4/B5/B6/B8/B19
		- GSM: B2/B3/B5/B8
	Position data output rates	1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz
	5 LEDs	indicating Satellites Tracking, RTK Corrections data, GPRS Status and Power
	Bluetooth	V 4.0 protocol, compatible with Windows OS and Android OS
	Calibration-free IMU integrated for Tilt Survey	Up to 60°tilt with 2.5 cm accuracy
Laser	Range	10m
	Accuracy(room temperature)	(3-5)mm + 1ppm
	Measuring Frequency	Classic Value: 3Hz Maximum Value: 5Hz
	Laser Injection Power	0.9mW~1.5mW
	Working Temperature	-20ºC~+50ºC
	Storage Temperature	-30ºC~+60ºC

Package
Company Profile Shanghai Apekstool was founded and based in Shanghai, specializing in the manufacturing and sales of Surveying equipment. We are dedicated to being a professional provider for survey equipment. Our goal is to provide the best products and excellent service to our customers all over the world.We have been involved in the geographic mapping industry for 10 years. We supply all products with reasonable prices and real-time support upon our own professional experience and high-quality supply chain. Like gnss rtk, total station, theodolite, auto level, rotary laser level, laser level and surveying accessories. We have sold to more than 156 countries and build our stable market.We are proud to guarantee that, with our strong technical background and communication capability, our sales/support engineers are able to answer your most complicated technical questions over the phone in English. That would save so much time for communication. Our business is growing and we invite you to be part of the success.
Customer Case
FAQ Q: Who are we? We are based in Shanghai, China and we are selling to Middle East, Africa, Southeast Asia, Eastern Asia, South America,North America, In almost every country we have customer representatives who can help us contact you.
Q: How do we process your order and give your warranty?We can have order by the third party of ****** to ensure your order and payment safety. We will process your order in our sales system, 1. to check machine appearance, 2. to register the machine permanent code, 3. to test machine fixed solution, 4. to pack and delivery. Our sales will follow up every step to the customer, giving you 100% assured experience and immersive online purchasing.We have 12 months quality warranty and 24 hours online technical support
Q: What can you buy from us?
We have known brands GNSS RTK system , total station , theodolite , auto level , rotary laser level, drones and surveying
accessories. All products are new and original. Different brands and different price ranges of products can meet the needs of all customers. We can offer one-stop services.
Q: What services can we offer?
Accepted currencies of payment: USD, EUR, JPY, CAD, AUD, HKD, GBP, RMB, CHF. Accepted payment methods: T/T, L/C, MoneyGram, Credit Card, PayPal, Western Union, Cash
Languages: English, Chinese, Spanish, Japanese,Portuguese,German, Arabic, French, Russian, Korean, Italian

---
