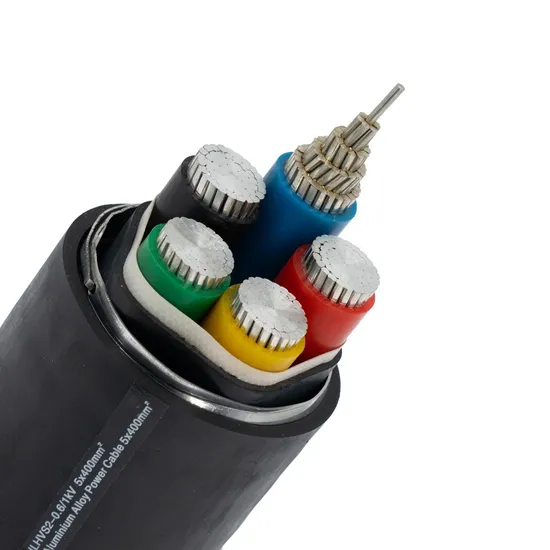

0.6/1kv XLPE Insulated PVC Sheathed Vlv 4X70mm2 Electrical Cable Low Voltage Armoured Power Cable 3 4 5 Core Aluminium Copper Conductor Cable

Product Description

Product Description
0.6/1KV AL/PVC/PVC 4X70mm2 Power Cable
Brief Construction:
2.1 Number of Core: 1Core, 2Core, 3Core, 4Core, 5Core, 3+1Core(3.5Core), 3+2 Core, 4+1Core, etc.
2.2 Conductor material: Copper or Aluminum (Stranded Round /Stranded compacted round/stranded compacted sector)
2.3 Insulation Material: XLPE OR PVC OR LSZH

2.4 Inner sheath (applicable if there is armour layer): PVC/PE
2.5 Armour layer (if required): Galvanized steel wire / Steel Tape
2.6 Outer sheath: PVC OR PE OR LSZH
3. The max. Conductor long time permissible operating temperature is 70 degree for PVC Insulation
and 90 degree for XLPE Insulation;
In short circuit, Max. Temperature is 160 degree for PVC Sheath and 250 degree for PVC Sheath. Detailed Photos
Packaging & Shipping
4. Packing: In roll / In wooden drum / In Iron-wooden drum / In steel drum.
Certifications
5. Certificate: ISO, CE, SGS, SONCAP, BV, COC, ETC.
Product Parameters
6. For other detailed information, pls contact us directly.

Class 2 stranded conductors for single-core and multi-core cables
1	2	3	4	5	6	7	8	9	10
Nominal cross sectional area	Minimum number of wires in the conductor						Maximum resistance of conductor at 20ºC
	Circular		Circular compacted		Shaped		Annealed copper conductor		Aluminium or aluminium alloy conductor
	Cu	Al	Cu	Al	Cu	Al	Plain wires	Metal-coated wires
mm2							Ω/KM	Ω/KM	Ω/KM
0.5	7						36	36.7
0.75	7						24.5	24.8
1	7						18.1	18.2
1.5	7		6				12.1	12.2
2.5	7		6				7.41	7.58
4	7		6				4.61	4.7
6	7		6				3.08	3.11
10	7	7	6	6			1.83	1.84	3.08
16	7	7	6	6			1.15	1.16	1.91
25	7	7	6	6	6	6	0.727	0.734	1.2
35	7	7	6	6	6	6	0.524	0.529	0.868
50	19	19	6	6	6	6	0.387	0.391	0.641
70	19	19	12	12	12	12	0.268	0.27	0.443
95	19	19	15	15	15	15	0.193	0.195	0.32
120	37	37	18	15	18	15	0.153	0.154	0.253
150	37	37	18	15	18	15	0.124	0.126	0.206
185	37	37	30	30	30	30	0.0991	0.1	0.164
240	37	37	34	30	34	30	0.0754	0.0762	0.125
300	61	61	34	30	34	30	0.0601	0.0607	0.1
400	61	61	53	53	53	53	0.047	0.0475	0.0778
500	61	61	53	53	53	53	0.0368	0.0369	0.0605
630	91	91	53	53	53	53	0.0283	0.0286	0.0469
800	91	91	53	53			0.0221	0.0224	0.0367
1000	91	91	53	53			0.0176	0.0177	0.0291

Our service.
1.Suffient support for our tendering representatives
2. Qualification documents support
3.OEM service available based on official & Legal authorization
4.strict quality control system
5.Faster lead time than our customer
6.Excellent quality with reasonable price
7.Strong technical support(technical data,drawing.etc)
8.Cable solutions to your particular requirements
9.Free sample is avaliable with economic express fee
10.Factory acceptance test assistant
11.Container loading design and handling. Company Profile
Yifang Electric group mainly specialized in wire&cables,including designment,production and sale.
Products are mainly covering low,medium,high voltage(1KV to 220KV) XLPE Insulated power cable,PVC insulated power cable,ABC cable,building cable control cable,rubber cable welding cable Etc.
Our XLPE cable can be manufactured according to the company's specification which is equivalent to IEC 60502,IEC60332,IEC60754. Some indexes are superior to above international standard.
FAQ
1.Q:Are you a factory or trading company?
A: Manufacturing base in Henan ,China, with more than 500 workers.
2.Q:How can I visit there?
A: Sure,If you need,we will arrange the driver to pick you up.
3.Q:How can I get some samples?
A: Contact me on below,Determin sample and address for shipping.
4.Q:Have you ever supplied cables to our country?
A: Yifang Cables have been sold to over 100 countries and regions in the world. can you contact me for details.
5.Q:What is your MOQ?
A: MOQ Normally 500 meters for big diameter cables.Please contact me for detail info if you have specific cable requirement.
6. Q:When can I get the price?
A: Usually quote within 6 hours after we get your inquiry.
7.Q:How long is your delivery time?
A: According to your order's quantity.Usually our lead time is 3 - 20 working days.

---
