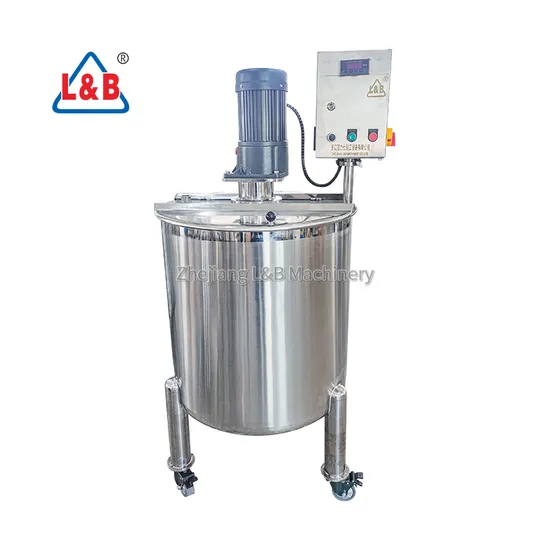

Liquid Emulsify Agitator Electric Steam Heating Mixer Jacketed Stainless Steel Mixing Tank

Product Description

Product Description
Sanitary Stainless Steel mixing tank (beverage mixing tank, syrups mixing tank)
Applicable range:
1. Used as liquid storage tank, liquid composing tank, temporary storage tank and liquid blending tank etc.
2. Ideal in fields such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.
Structure characteristics:
1. Adopt structure of internal tank and external package, with heat preservation materials inside.
2. Materials are all sanitary stainless steel.
3. Humanized structure design and easy to operate.
4. Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.
Configuration of tank:
1. Quick open manhole.
2. Various types of CIP cleaners.
3. Fly and insect resistant sanitary breathing cover.
4. Adjustable triangular bracket.
5. Dismountable materials input pipe assembly.
6. Thermometer (According to customer requirements ).
7. Ladder (According to customer requirements).
8. Side blender.
9. Liquid level meter and lever controller (According to customer requirements).
10. Eddy-proof board.
It can be made according to special requirements of customers. Total height (H) is in accordance with outlet height of 800 mm. If outlet height is changed, then total height(H) shall also be adjusted.
We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers, pumps, tanks etc for many years. We can design the products according to your special request. OEM is welcome too.

Main technical parameters
Effective volume	Dimension of tank(D*H)	Total height(H)	Diameter of inlet& outlet	Heat preservation layer	Motor power	Blending speed
(L)	(mm)	(mm)	(mm)	(mm)	(kw)	(r/min)
1000	1060*1220	2550	51	60	0.75	960
1500	1160*1500	2850	51	60	1.1	960
2000	1340*1500	2900	51	60	1.1	960
3000	1410*2000	3400	51	60	1.5	960
4000	1620*2000	3450	51	60	1.5	960
5000	1810*2000	3500	51	60	2.2	960
6000	1980*2000	3550	51	60	2.2	960
7000	1930*2440	4000	51	60	3	960
8000	2060*2440	4000	51	60	3	960
9000	2180*2440	4050	51	60	3	960
10000	2300*2440	4050	51	60	3	960
12000	2270*3000	4600	51	60	4	960
15000	2530*3000	4700	51	60	4	960
20000	2640*3660	5400	51	60	5.5	960
