Product Description
Product Description

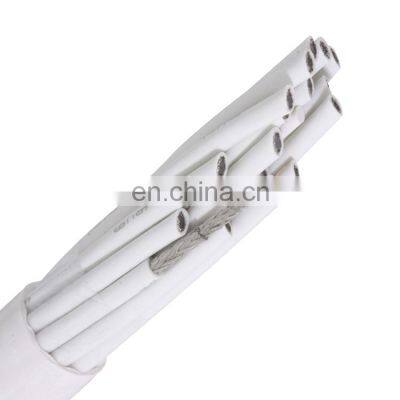

YUXUN Telecom Multi-Core Coaxial Cable BT3002Product Description BT3002×16C 75Ohm Coaxial Cable Specifications: INNER CONDUCTORMaterialBare Copper Diameter 0.31mm±0.01 INSULATIONMaterialLD-PE Diameter1.95mm± 0.1 OUTER CONDUCTORMaterial1Tinned copper Diameter180*0.10mm Pitch125mm,85% Coverage, Material2Tinned copper Diameter296*0.10mm Pitch225mm,86% Coverage, FillerMaterial1PP Wire,0.2*20mm WarppingMaterial1Polyester(Pet)Tape Diameter10.03*50mm OVERALL JACKET1Material1Grey PVC Diameter13.55±0.20mm OVERALL JACKET2Material2Grey PVC Diameter219.0mm CHARACTERISTIC IMPEDANCE75ohms±3 OPERATING TEMPERATURE RANGE70 Deg C CAPACITANCE RATIO (CONDUCTOR TO SHIELD)66(pf/m) ATTENUATION2.17 [ dB/100m@1MHZ] 4.38 [ dB/100m@4MHZ] 9.11 [ dB/100m@17MHZ] 18.69 [ dB/100m@69MHZ] 19.92[ dB/100m@78MHZ] Company InformationProduction LineOur clientPackaging & ShippingCertificationsFAQ Q1:Are you a trading company or manufacture?A1:YUXUN cable is a professional manufacturer since 1996, so we can provide perfect solution on cables and can control the quality from the first procedure to the last. Q2:What is your delivery time?A2:Normally,our delivery time is 15-20days after get your deposit. . Q3:What is your MOQ?A3:Usally,the MOQ of our general coaxial cable product is 15-20KM,but every inquiry will be considered individually. Q4:What is your general payment term?A4: Normally, our payment term is 30% deposit by TT when order confirmed, and 70% balanced payment by TT or LC at sight before delivery. Q5: Can you produce the specfic cable strictly according to clients' requirement?A5: Yes, we have professional technical team, so we can do ODM for customers. Q6: Where you are located?A6: We located in the city of ZHUHAI, quite near to HK/Macao/Shenzhen/Guangzhou. If you intersting in our cables, pls send the enquiry now!!!Free sample will be deliveried to your address soon!!Contact us
>>
