Tder Electric 16m Articulated Boom Lift Picker Mounted Boom Lift Price

Product Description

Product Parameters

Model	ZTQE1416Z
Maximum working height	15.9m
Maximum platform height	13.9m
Maximum horizontal extension	7.6m
Maximum span distance	7.9m
Length-when retracted	6.58m
Width - stowed	1.76m
Height when closed	1.98m
Platform dimensions (length x width)	1.53m*0.76m*1.1m
Wheelbase	2m
Ground clearance	0.2m
Carrying capacity	230kg
Maximum number of people working on the platform	2
Travelling speed (stowed)	5.1km/h
Travelling speed (lifting)	0.8km/h
Climbing capacity (stowed)	30%
Inner steering radius	0.8m
Outside steering radius	3.5m
Maximum permissible working inclination	4°
Tyre	26*12-16
Power source	6V*8
Drive Steering	2WD*2WS
Operating weight	6800kg

please contact us if you need more parameters

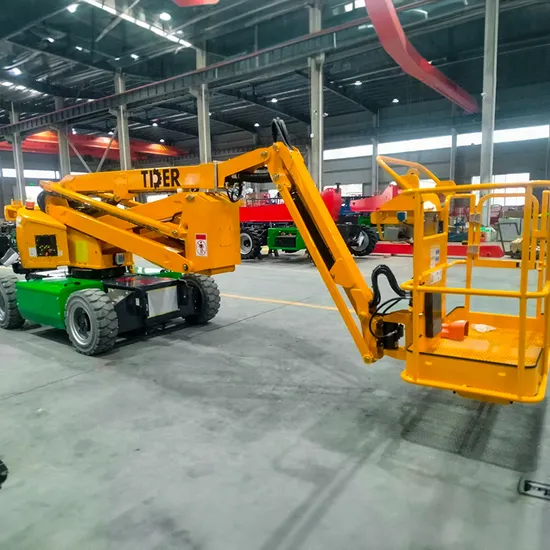

Detailed Photos
- strong load capacity with the max platform occupancy being 230KG.
- Flexible turning ability enables workers to easily reach the right workplaces.
- Excellent off-road performance makes the vehicle go through complex terrains smoothly.
- Complete safety devices and compact Structure.
Packaging & Shipping
All products will be strictly tested before shipping.
*Before delivery, we will arrange our staff to take photos and videos of your machine.
*The extra security packing will be carried out for the nude cargo.
*Ropes and triangle blocks will be used for fixing forklifts.
*Product certificates and nameplates are provided.
*A tutorial CD, tool box and extra paint are included as free gifts.
Certifications
You can send an email or message to explain your needs, and we will recommend a suitable machine for you according to the model and configuration requirements provided. Company Profile
Founded in 2003, TDER Group is an international large-scale machinery manufacturing company, engaged in the invention and sales of various machinery products, including forklifts, loaders, warehouse equipment and port equipment. The TDER Group has established 3 factories. All 25 categories of products have passed the SGC, TUV, BV, INTERTEK and other authoritative international institutions certification. Today, our products have been exported to Brazil, Russia, Australia, Canada, Turkey and other 158 countries and regions, with 56 agents.
Customer Feedback

Why Choose Us
FAQ
1. Why choose us?
As a manufacturer, Tder industrial is committed to offer not only products with high quality and performance and competitive
price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory?
Tder industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders, forklift
trucks and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with
the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
5. How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver
immediately. But customized products will take more time, depending on the requirements of your order.
6. Can we provide OEM service?
Tder industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.

---
