2 (4) Flute, 4 (6) Flute Solid Carbide End Mills

Product Description

Solid Carbide End Mills
Product Description: 1. Widely used in hardness from copper, cast iron, aluminum alloys, titanium alloy, mold steels, alloys steels, tools steels to the high hardness of HRC55 or more processing materials.
2. Solid carbide tools offer long tool life and faster cutting speeds than other substrates, but more brittle. Make sure work piece and machine are stable, use hydraulic chucks, high quality collet chucks, or shrink fit chucks.
3. Please adjust the speed, feed and cutting depth according to actual cutting conditions.
4. Tool overhang, please use the required amount of minimum size, amount of long overhang is high vibration, turn it to lower the number of feed.
5. Adapt to several kinds of cooling conditions, for example oil mist, water, oil, air cooling. Can be used for dry machining.
End mills are designed to remove material and create multi-dimensional shapes and profiles. They have cutting edges along the outside diameter and flutes that remove chips from the cutting area and allow cooling fluids to enter. If heat is not reduced effectively, the tool's cutting edges will dull and additional material buildup can occur. The number of flutes can range from two to eight. Two-flute designs offer the most efficient chip removal, but more flutes provide a smoother finish. The shank is the end of the tool held in place by a tool holder or machine. Center-cutting end mills can create three-dimensional shapes and profiles, and make plunge cuts similar to a drill bit. Non-center-cutting end mills are for applications such as peripheral milling and finishing, but cannot make plunge cuts.

2 Flute	4 Flute	Diameter	Shank	Flute Length	Allover Length
40402A2010	40402A4010	1.0	3	3	38
40402A2015	40402A4015	1.5	3	4	38
40402A2020	40402A4020	2.0	3	6	38
40402A2025	40402A4025	2.5	3	8	38
40402A2030	40402A4030	3.0	3	8	38
40402A2040	40402A4040	4.0	4	11	50
40402A2050	40402A4050	5.0	5	13	50
40402A2060	40402A4060	6.0	6	16	50
40402A2080	40402A4080	8.0	8	19	60
40402A2100	40402A4100	10.0	10	22	75
40402A2120	40402A4120	12.0	12	26	75
40402A2140	40402A4140	14.0	14	30	90
40402A2160	40402A4160	16.0	16	32	100
40402A2180	40402A4180	18.0	18	38	100
40402A2200	40402A4200	20.0	20	38	100

Company Information:
Ostar Tools Group, main head office is located in Shanghai City, and have factory are produce Hole Saws & Saw Blade at Jiangsu Province. We were established in 2003, as one of the leading manufacturers of hole saws & Saw Blade and exporters of different cutting tools in China. Our partners and customers include the most famous companies around Europe, America, East Asia, and Australia.
Ostar's business is mainly involved in cutting tools for both industry and DIY use, including exporting qualified products from China, sourcing new products, making OEM design for our customers, and helping to establish and develop business in cutting tool market for partners.
Ostar has a wide product range, including Hole Saws, Saw Blades, Drills, Cutting Discs, specially used in cutting wood, metal and masonry, as well as some new items with patents, like Ratchetable Wrenches, Preset Torque Wrenches, Adjustable Wrenches, Permanent Magnetic Lifters, Universal Drills, 3 Flute Router bits, Vacuum Brazed Diamond Manual Wheels, Profiling Wheels and Cup Wheels.
In order to bring you the best service, we take every step of our work into consideration. Therefore, intelligent, innovative and experienced staff are indispensable. We have professional work divisions in each department, including sales, information and technique supply, manufacture monitor, artwork design, shipping arrangement, quality control and after-sales service.

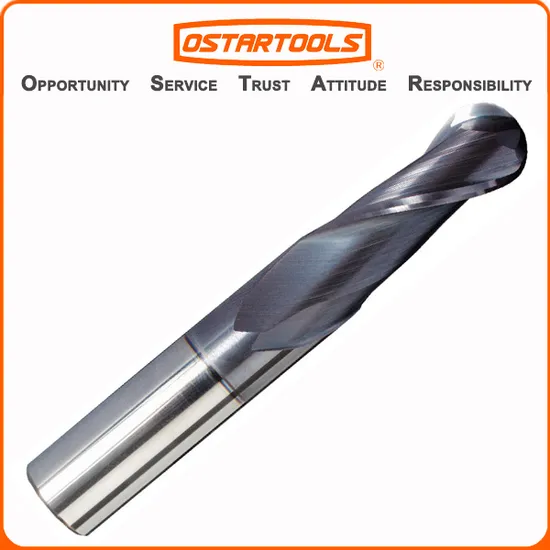

Product Picture:
