Single or Double Hanger Hook Type Spinner Hanger Shot Blasting Machine for Excavator Parts and Construction Machinery

Product Description

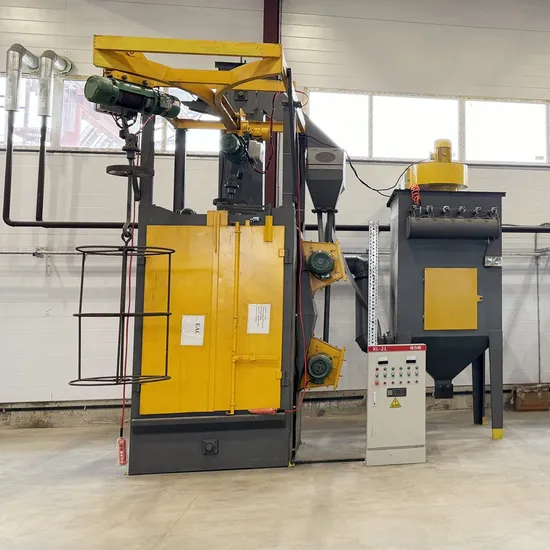

Single Or Double Hanger Hook Type Shot Blasting Machine for Excavator Parts and Construction Machinery Product Parameters 1. Q37 Hook Type Shot Blasting Machine
It is suitable for surface cleaning or strengthening of castings, forgings, welded parts and heat-treated parts of various varieties, large, medium and small batches. It is divided into two main forms: single hook type and double hook type. The chamber adopts a fully enclosed structure, special wear-resistant alloy cast iron guard plate, and no projectile splashing phenomenon. The electric hoist is used to realize the loading, unloading, lifting and walking of the workpiece; the self-rotation device is used to realize the forward and reverse rotation of the workpiece in the shot blasting chamber. Automatic or manual control is optional. It has the characteristics of no pit, compact structure and high productivity.

Item	Unit	Q376	Q378	Q379	Q3710	Q3720	Q3730	Q3740	Q3780	Q37100
Single hook lifting weight	kg	600	1000	1000	1000	2000	3000	5000	10000	10000
Shot blasting capacity	kg/min	2X150	2X200	2X200	2X220	3X220	3X250	6X250	8X250	8X270
Separator separation capacity	T/h	25	30	30	30	45	45	60	120	150
Lifting capacity of hoist	T/h	25	30	30	30	45	45	60	120	150
Max single product size	mm	Φ600X1200	Φ800X1500	Φ900X1600	Φ1000X2000	Φ1200X2200	Φ1400X2700	Φ1600X3000	Φ2500X5100	Φ2800X5400
Ventilation capacity	m 3/h	5000	5300	5300	9600	15600	18500	22000	28000	28000
Total power	kw	≈23	≈34	≈34	≈48	≈60	≈67	≈80	≈150	≈180

2. 37 Series Hook Series Membrane Shell Shot Blasting Machine
The membrane shell shot blasting machine is an advanced equipment independently developed by our company after visiting many wax mold casting companies and cooperating with many domestic scientific research institutions. The shot blasting machine eliminates the wax mold casting shell shaking process. The membrane shell after shot blasting is broken and screened to achieve the recycling of modeling sand. It is an advanced equipment that integrates shelling, shot blasting and screening, which greatly saves the factory's costs and is welcomed by the majority of wax mold casting companies.
3. Q38/48/58 Series Catenary Shot Blasting Machine
This series of continuous, step-by-step, accumulation-release catenary and chain-through shot blasting machines are suitable for surface cleaning or strengthening of batches of medium and small parts, forgings and heat-treated parts. The workpieces can run continuously or step-by-step with the chain, and can also adopt advanced accumulation-release push rod catenary conveying, which can realize fixed-point loading and unloading and fixed-point shot blasting cleaning in a stopped state.

Model	Single hook weight (kg)	Product size(mm)	Capacity(hook/h)	Type
Q382	200	Φ500x1200	30-60	Continuous
Q383C	250	Φ700x1200	30-60
Q384C	400	Φ700x1500	40-70	Stepping
Q483	300	Φ1060x1200	10-25
Q485	500	Φ1200x1500	10-25	Accumulating
Q488	800	Φ1400x1800	10-25
Q583	300	Φ1000x1500	30-60
Q585	500	Φ1200x1500	30-60
Q588	800	Φ1300x2400	30-60

Packaging & Shipping
Company Profile Wuxi Longterm Machinery is an advanced manufacturing enterprise integrating shot blasting/waste gas treatment/coating equipment manufacturing.
We have strong technical strength, advanced production equipment, reliable quality, and a professional technical team. It has long-term hired experts from the China Foundry Association and university professors as technical consultants to continuously improve the product
technical content and manufacturing level.
The main products are: Q32/Q35/Q37/Q69 series shot blasting equipment; large-scale through-type pretreatment equipment and sandblasting room/coating equipment; dust removal equipment, VOCs organic gas treatment equipment; S114B/S116A sand mixer; various alloy steel shots/stainless steel shots/wire cut shots; and alloy wear-resistant parts, shot blasters, rubber tracks, dust bags, filter cartridges and other accessories.
With the above-mentioned product quality, preferential prices and perfect after-sales service, our company looks forward to working with you to create brilliance together!
FAQ In order to recommend you the proper machine, we'd like to get the below info from you:
1. Workpiece size drawing or detailed size?
2. Daily capacity?
