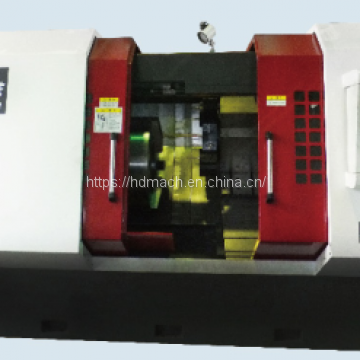

Pipe threading lathe for casing sub (slant bed)

Product Details

Product Description

Product Description
HYSK-1336T series lathe is special for threading casing pipe, casing sub, it is high
accuracy, high rigidity, big power machine. Horizontal integral cast iron
machine bed, bed guide rail 45°slant, machine operating and tool
setting is convenient . Use 8-station or dual immovable tool
rest, Fanuc CNC system, super spindle rigidity, spindle box outside cycle
oil cooling, centrifugal water pump cooling, dual pneumatic chucks,
improved the working efficiency. It is the ideal machine for casing pipe.

Items	Unit	HYSK-1316	HYSK-1322	HYSK-1336	HYSK-1355
Max. swing diameter over bed	㎜	φ550	φ650	φ880	φ1200
Max. swing diameter over saddle	㎜	φ300	φ350	φ350	φ600
Max. machining diameter	㎜	φ150	φ215	φ340	φ540
Max. machining length	㎜	300	300	300	300
Spindle bore diameter	㎜	φ160	φ220	φ360	φ550
Range of thread machining		Round thread, buttress thread, trapezoidal thread	Round thread, buttress thread, trapezoidal thread	Round thread, buttress thread, trapezoidal thread	Round thread, buttress thread, trapezoidal thread
Spindle bore speed	r/min	20～950	20～450	50-320	50-200
X-axis travel	㎜	350	400	400	400
Z-axis travel	㎜	700	800	800	800
X/Z servo motor	Nm	20/20	27/27	27/27	27/27
Main motor power	kW	22	30	37	37
Rapid movement speed	m/min	8/10	8/10	8/10	8/10
Pneumatic chuck diameter	㎜	480	530	735	1000
Spindle center height	㎜	1100	1100	1150	1200
Rear tool rest	NO.	8 stations	8 stations	8 stations	8 stations
Front tool rest	NO.	1 station	1 station	1 station	1 station
Roughness	mm	Ra1.6	Ra1.6	Ra1.6	Ra1.6
Machine weight	㎏	7600	8900	11800	22000
Machine dimension（L×W×H）	mm	3400*1700*1950	3400*1700*1950	5200*2400*2400	5300*2500*2500

---
