US$13.00-15.00
|
1 Piece
(MOQ)
|
Basic Info.
Grid Type
off-Grid Inverter
Circuit Topologies
Push-Pull Type
Nature of Wave String
Square Wave Inverter
Transport Package
Neutral Export Carton
Production Capacity
100000PCS/Month
Product Description

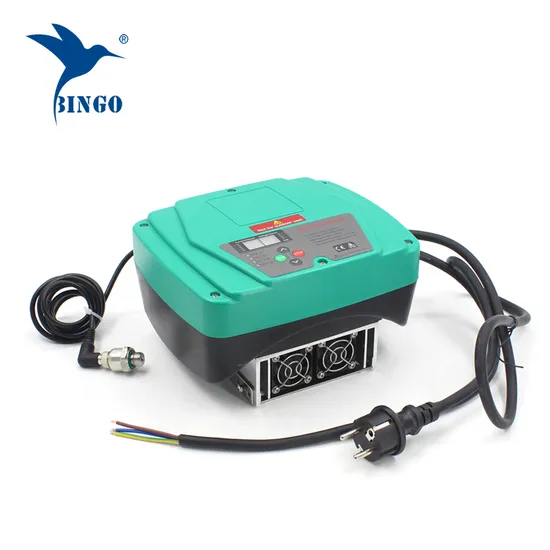

Inverter for Water Pump
1. Introduction:
PS-WE61 controller is a pump set controller which is controlled by microcomputer with automatic pressure tracking and regulating functions. The single-phase power gives it a wide range of bersatility in its application; The newly advanced controlmethod of adjusting power according water consumption can save a lot of electricity; The integrated design makes it easy to be installed and operated without use of other appliance parts and be free of maintenance. It can entirely replace the traditional constant pressure water supply equipment composed by PLC, inverter, controller cabinet and pressure sensors. The controller installed with two pumps will be the most economical water supply system nowadays. As a result, this device can significantly reduce your initial equipmeng investment and long-term use-cost.
Application:
PS-WE61 frequency constant-pressure controller combined AC frequency control tech
And auto-control tech together, created an automatic water supply system with advanced
Performance, safe and reliable. This system mainly used in water supply equipment, can be
Used as a booster control system in the boiler feed water systems, industrial water recycling systems, cooling water systems, also can be used for fire fighting, irrigation and sprinkler devices. The main application is used in domestic water supply system in residential villas and so on.
2. Technical Data:
| Power supply | Single phase 220-240V,50/60Hz |
| Main pump motor(Pumo1) | 3-230V(CONNECTION) /400V(Y-CONNECTION)/50/60Hz,Max.1500W. |
| Auxiliary pump motor(Pump2) | Single-phase 220-240V, 50/60Hz,Max.1500W(Flow rate and power shall not exceed main pump) |
| Protection Grade | IP65 |
| Ambient temperature | 0°C~40°C |
| Liquid | Drinking water or non-drinking clean water |
| Liquid Temperature | 0°C~50°C |
| Max pressure-resistant | 10bar |
| Pressure setting | 1-9bar |
3. More information, please go to: bingosensor.en.made-in-china.com
>>
