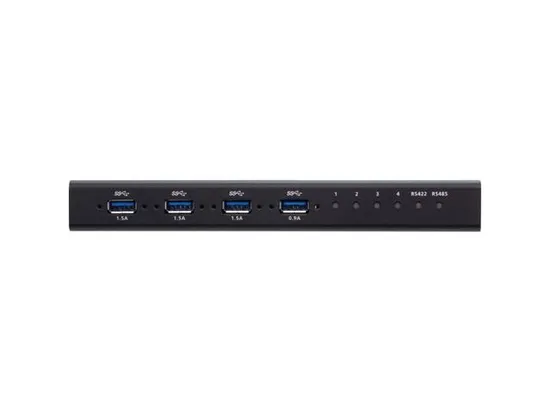

USB Peripheral Switches 4 X 4 USB 3.2 Gen 1 Industrial Hub Switch

Product Description

4 x 4 USB 3.1 Gen 1 Industrial Hub Switch - USB Type B - 4 USB Port(s) - 4 USB 3.1 Port(s) - Mac, Product Description
Enables 4 computers to share 4 USB 3.2 Gen1 devices Support port selection via remote controller or RS-422/RS-485 link through 5-pin terminal block Supports DC 9-24V power input by terminal block Supports USB BC 1.2 and over current protection The ITEM is a 4-port USB 3.2 Gen 1 Industrial Switch that enables four computers to share and use USB 3.2 Gen 1 devices such as keyboard, mouse and other peripheral devices. Users can manually switch the focus to a particular computer using the pushbutton on the switch, or have the focus automatically switched based on detection of connected computers.
It eliminates the cost to implement the complicated redundant systems and equipment for each computer. The US3344I chassis and rack mountable design is suitable for any industrial environment. For extra convenience, it features an external remote control port that can simplify cabling layout. The US3344I allows for a neat and tidy installation - the USB cables are bundled to save the extra cost of purchasing USB cables.
Package Contents 1x 4x4 USB 3.2 Gen 1 Industrial Hub Switch 2x USB 3.2 Gen 1 Type-B to Type-A Cable 1.2M 2x USB 3.2 Gen 1 Type-B to Type-A Cable 1.8M 1x Remote Port Selector 1x Mounting Kit 1x Terminal Block Adapter Set (an RS-422/RS-485 and a DC terminal block adapter) 1x User Instructions MAIN OVERVIEW FEATURES:Host Interface: USB 3.2 Gen 1Total Number of USB Ports: 4Number of USB 3.1 Ports: 4Number of Thunderbolt Ports: 4Height: 1"Width: 3.1"Length: 7.9"Weight (Approximate): 1.12 lbPackage Contents:
4 x 4 USB 3.1 Gen 1 Industrial Hub Switch 2 x USB 3.1 Gen 1 Type-B to Type-A Cable 1.2M 2 x USB 3.1 Gen 1 Type-B to Type-A Cable 1.8M 1 x Remote Port Selector 1 x Mounting Kit 1 x Terminal Block Adapter Set (an RS-422/RS-485 and a DC terminal block adapter) 1 x User InstructionsPlatform Supported: FEATURE:
Enables four computers to share USB peripheral up to four devices USB 3.2 Gen 1 compatibility with maximum data transfer rates up to 5 Gbps Multiplatform support - Windows, Mac and Linux Displays port focus via LED indicators Metal mechanical cassis with wall mountable design Supports aftermarket USB M2 screw locking cable Supports port selection via remote controller or RS-422 / RS-485 link through 5-pin terminal block Supports hot plugging Supports DC 9 - 24V power input through terminal block* Supports USB BC 1.2 and over current protection Power on detection
- The computer focus automatically switches to a newly plugged-in or powered-on computer
- The computer focus automatically switches to port 1 when the focused computer is unplugged or powered-off Firmware upgradable

Computer Connections	4
Connectors
Computer	4 x USB Type B Female (Blue)
Device	4 x USB Type A Female (Blue)
Serial	1 x 5-pin Terminal Plug (Green)
Power	1 x 2-pin 9-24V Terminal Plug (Green)
Power (Optional)	1 x 12V DC Jack Female (Black)
Power Mode	Terminal Block / DC Jack Power Adapter* *DC Jack Power Adapter is available for purchase separately from your closest ATEN dealer. Part No.: 0AD8-8012-33MG
Port Selection	Remote port selector / Serial command
LEDs
Selected	4 (Green)
Serial	RS422 (Orange ) RS485 (Green )
Cable Length
USB Cable	2x USB 3.2 Gen 1 Type-B to Type-A Cables 1.2M 2x USB 3.2 Gen 1 Type-B to Type-A Cables 1.8M
Remote Port Selector	1.8 m
Environmental
Humidity	0-80% RH, Non-condensing
Operating Temperature	0-50°C
Storage Temperature	-20-60°C
Physical Properties
Housing	Metal
Weight	0.51 kg ( 1.12 lb )
Dimensions (L x W x H)	20.00 x 8.00 x 2.50 cm (7.87 x 3.15 x 0.98 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

---
