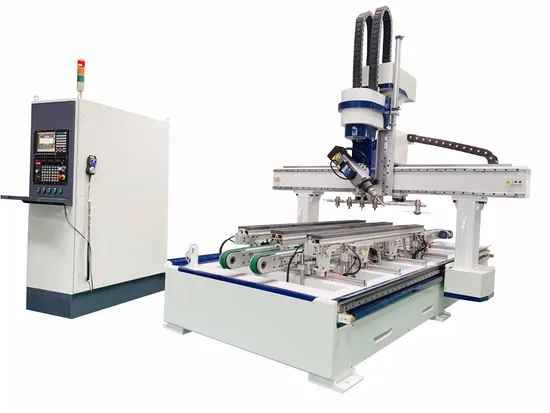

Mars Hgs12 Five Axis Wooden Door Cutting and Milling Atc CNC Router Machine

Product Description

MARS HGS12 FIVE AXIS WOODEN DOOR CNC MACHINING CENTER
1,Main parameters

Machine Model	MARS-HGS12
Machine dimension	4000*2600*2700mm
Net worktable height	790mm
Net Weight	3000kg
Max machining size	2400*1250mm
Min machining size	2000*750mm
Compressed air pressure	0.5~0.7MPa
Max speed of Y axis	80m/min
Max speed of X axis	80m/min
Max speed of Z axis	20m/min
Spindle power	12KW Air-cooling spindle
Max rotating speed	0-24000r/min.
Total power	23.7KW
Working voltage	380V 50Hz
Operation system	SYNTEC
drive servo motor	YASKAWA

2,Details
3,Application scope
Wooden doors,cabinets,Showcases,panels,office furniture,tables and chairs,doors and windows,speaker,
game cabinets, computer desks, sewing machine tables, musical instruments, acrylic, PVC, density board
milling, punching, slotting, cutting, plane, curved surface, etc. processing

---
