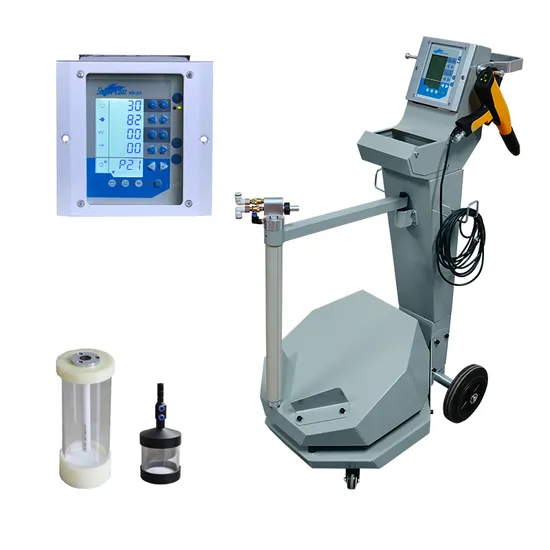

Kafan-X1 Professional Powder Coating Machine with Mini Hoppers for Metal Coating

Product Description

Kafan-X1 Professional Powder Coating Machine with Mini Hoppers for Metal Coating
Fast delivery /On stock * Best coverage, even on objects with complex shapes and corners.
* Easier penetration into corners
* More regular powder distribution for powder savings
* Constant powder outputs for more uniform finish. * Optional extra powder hoppers for more convenient color change.


Product Description
A full digital controller using advanced DVC technology allows you to precisely control crucial paramters such as high voltage, spraying current and powder output,, which allows repeatable performance.

3 pre-set application programs, based on COLO over 10 years experience, are a great help for less experienced users.
Flat parts program: ideal for the coating of panels and flat parts.
Complex parts program: coating of three dimensional parts with complex shapes
Recoat program: optimized for the re-coating of parts which have already been coated.
*Advanced users can create and easily recall 20 kinds of programs. The programs are automatically saved and can be easily recalled when required. Each part can be coated always with its ideal settings.
Detailed Photos

100kv Spray Gun with remote control of powder flow Different Nozzle Types
Grounded Anti-static Powder Hose COLO developed powder injector for more constant flow
2 lbs powder fluidiing cup 1 lbs powder fluidiing cup
Product Parameters

Model	KF-X1
Voltage	220V/110V (can be customized)
Frequency	50HZ/60HZ
Temperature range in use	-10 ºC+50 ºC
Powder Gun Data	Gun weight: 500G Rated output voltage 24VDC Maximum output current 180Ua(max) Maximum output voltage 0-100KV ( adjustable) Maximum powder injection : 600g/min Polarity negative (-)
Pheumatic Data	Maximum input-air pressure 10kg/cm Optimum input-air pressure 6kg/cm Minimum input-air pressure 4kg/cm Maximum water vapor content or compressedair 1.4g/N m3 Maximum oil vapor content of compressed air 0.1ppm Maximum compressed-air consumption 13.2 m3/h

Related Products


Packaging & Shipping

Company Profile
Certifications

Application

Customer Visiting&ExhibitionWe have went to many exhibitions durning our 11 years running .Also many customers visit our company ,check the goods and discuss to expand our business .

---
