Zhme New ATV/UTV Rope Winches with Handle

US$110.00 50 Pieces (MOQ)

Basic Info.

Model NO.

SN3500

Certification

CE

Rated Line Pull

3500lbs(Kgs) Sinle Line

Transport Package

Netural Packages

Specification

CE

Trademark

ZHME(can be OEM)

Origin

China

HS Code

84253190

Production Capacity

5000 PCS Per Month

Packaging & Delivery

Package Size

50.00cm * 26.00cm * 20.00cm

Package Gross Weight

14.000kg

Product Description

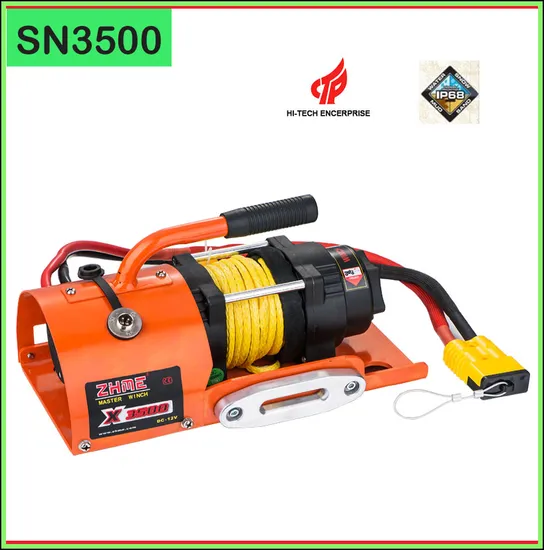

ZHME new Atv/Utv Rope Winches with handle
1.Brake system: fully independent and automatic braking ensures safety and reliablity.
2.Water reasistance: proven design for reasistance to severe environmental conditions
3.Motor: Low current and high efficiency minimize battery drain.
Rated line pull: 3500lbs(1587kgs) single line
Motor: Permanent Magnetic motor (1.5HP)/1.0kw DC12V
Gear Train: 3 stage planetary
Gear ratio: 198: 1
Clutch: Sliding Ring gear
Braking action: Automatic in the drum
Fairlead: Aluminum hawse fairlead for synthetic rope
Synthetic rope: Ø 5.5mm × 10m
Drum size: 50mmx76.5mm
Dimensions: 334mmX114mmX120mm
Mounting bolt
Pattern: 124mmX76mm
N. W: 17.6LBS(8.0KGS)
Packing: 440mmX250mmX220mm(per carton)
1000PCS per 20' container
Accessories:
Dimensions:

Line speed and motor current(first layer)
Line pull	lbs	0	1000	2000	3000	3500
Line pull	kgs	0	454	907	1360	1589
Line speed	FPM	16	10.5	9.2	7.2	5.9
Line speed	MPM	4.9	3.2	2.8	2.2	1.8
Motor current	Amps	15	70	105	135	150

Line speed and cablecapacity
Layer of cable		1	2	3	4
Rated line pull per layer	lbs	3500	2870	2430	2100
Rated line pull per layer	kgs	1598	1300	1100	950
Cable capacity per layer	Ft.	6.9	15.1	2409	36.4
Cable capacity per layer	M	2.1	4.6	7.6	10
