Introduction

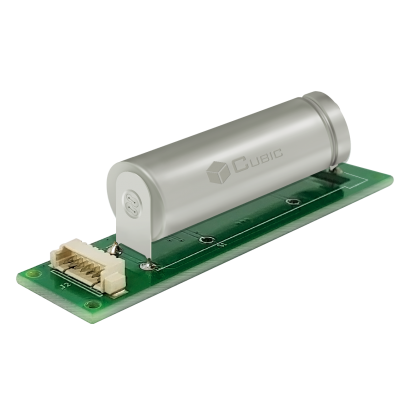

Cubic ECO-5011A-01 is a state-of-the-art carbon monoxide (CO) sensor that leverages advanced electrochemical technology to provide precise and reliable CO detection. With an impressive measurement range of 0 to 1000ppm and outstanding accuracy of ± 5ppm or ± 5%, take whichever is greater, it sensor ensures the accurate detection of CO level of safety for residential and commercial gas appliances.
Designed for high temperature condition of gas furnaces and boilers, Cubic ECO-5011A-01 operates efficiently in a wide temperature range from -20℃ to 70℃ and can be safely stored between -40℃ and 85℃. Additionally, it could achieve a long lifespan of up to 10 years, significantly reducing the need for frequent replacements and ensuring long-term safety.
Cubic ECO-5011A-01 also features rapid response times and minimal zero drift, maintaining stability and reliability throughout its lifespan. Moreover, Cubic electrochemical CO sensor is certified by UL2075 safety standards, making it a dependable choice for CO detection.
Features
1. High temp up to 70C durable
2. Excellent accuracy with good linearity
3. Temperature compensation design and value output
4. Long lifetime over 10 years
5. Factory calibrated, no user calibration required
Specifications
| Working Principle | Electrochemical technology |
| Measurement Gas | CO |
| Measurement Range | 0-1000ppm |
| Accuracy | ±5ppm or 5%, take whichever is greater |
| Resolution | 0.05ppm |
| Response Time | T90<60S |
| Output | UART_TTL (3.3V) |
| Working Temperature | -20℃～70℃ |
| Storage Temperature | -40℃～85℃ |
| Relative Humidity | 5~99%RH (non-condensing) |
Power Supply
| 4.5~5.5V DC |
Working Current
| ≤15mA |
| Lifetime | 10 years |
Weight
| <20g |
Applications
1. Gas-fired central furnace
2. Gas boiler
3. Gas wall furnace
4. Gas floor furnace
>>
