Best Quality of Electrode for Sg100 Gun From Wisdom Company

Product Description

SG100 Plasma Gun Introduction Type SG100 is considered by the industry as a flexible and durable plasma spray gun, which can be used in many applications to output 40KW of energy in the subsonic, Mach 1 and Mach 2 modes.
In addition, the SG100 can also provide an inner hole gun configuration to correspond to the requirements of the inner hole coating spraying.
Equivalent: Praxair SG100
SG100 Gun Physical Parameters

Dimension(mm)	137*143*175
Weight(kg)	1.8
Maximum power(kw)	40
Cooling water flow(LPM)	14
Cooling water pressure(bar)	13.5
Cooling water temperature (degree)	18
Deposition efficiency	<80%

Customer Value Quality Guarantee; Super cost effective; Experienced industry background; Professional technical consultation; In stock with short delivery time. SG100 gun wearing parts

OEM No.	Wearing parts Name
895-2083-730	Nozzle

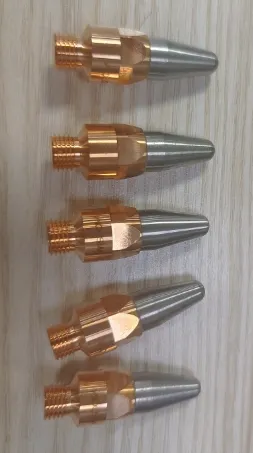

895-1083A-720	Electrode
03083-112	Gas distribution ring
01083A-122N	Front Gun body
01083B-200	Center Gun body
01083B-205I	Rear Gun body
01083A-108	Cathode base
2083-123	Plasma gun cap
5004378	90 degree powder feeding tube
7000611	Screws
7000435	Screws
7000422	Set screw

---
