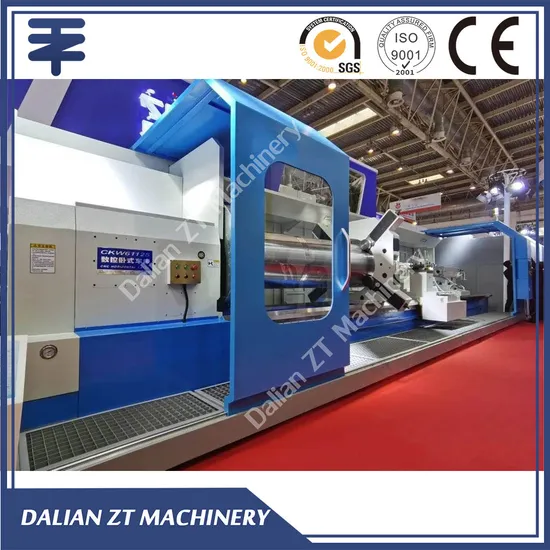

CK61125 Large CNC Flat-Bed Horizontal Turing Lathe Machine with Spindle Bore 130mm

Product Description

Features:

Flat bed structure;high rigidity;heavy load capacity and good reliability; The rotary built-in center in the tailstock features with heavy load and is easy to operate;Rapid movement function; The model of lathe is specially suitable for the following industries: paper making, textile, rubber and shipbuilding etc..The lathe is suitable to machine large sized parts, such as disc type, rubber roller; it can also cut tread, drill hole and bore hole.

Item	CK61125x3000
Max. swing over bed	1250mm
Max. swing over gap	1500mm
Max. swing over carriage	900mm
Max. Turning length	3000mm
Max. Workpiece weight between centers	6000kg
Width of bed	755mm
Spindle nose	ISO A2-15
Diameter of spindle front bearing	200mm
Diameter of spindle bore	130mm
Spindle taper	Metric No.140mm
Number of spindle speeds	21 steps; manual
Spindle speed range (r/min)	3.15~315r/min
Main motor power	AC22kW
Tool shank section	32x32mm
Diameter of tailstock quill	160mm
Taper of tailstock quill	Morse No.6
Travel of tailstock quill	300mm
Weight of machine (3m length)	11500kg
Additional weight per 1 m BC	1200
Overall dimensions of machine (3m length)	6100x2000x2200

MACHINING ACCURACY: Roundness of finish turning surface: 0.010 mm Flatness of finish turning face: 0.030 mm / 300 mm Roughness of finish turning surface: Ra 1.6 Pitch accuracy of finish turning threads: 0.025 mm / 50 mm Positioning accuracy: X: 0.030 mm; Z: 0.100 mm Repeatability positioning accuracy: X: 0.012 mm; Z: 0.025 mm Accuracy of size: IT6 STANDARD ACCESSORIES ACCESSORIES SUPPLIED WITH MACHINE: 4-JAW CHUCK, DIA. OF 1,000 MM: 1 SET STEADY REST, DIA. OF 50 TO 590 MM: 1 SETS LIGHTING DEVICE: 1 SET COOLANT DEVICE: 1 SET DEAD CENTER: 2 PIECES FOUNDATION BOLTS: 12 PIECES BALANCING LEVEL PADS FOR FOUNDATION: 12 SETS
FAQ
1. How can I choose the most suitable machines ?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you, too.
You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are brand new, made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.

3. Is machine tested ?
A: The accuracy, noisy will be tested according to China GB standard.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5. What's the Payment Terms ?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
Irrevocable L/C at sight also acceptable but it will subject additional bank fee.

6. Do you accept cash or L/C?
A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account.
7. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)
8. How is the warranty?
A: 12 months after shipment date
9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.

---
