Sdc400 Portable High Precision Dry Cut Metal Cutting From 75mm to 400mm Saw for Cutting Metal Pipe and Plastic Pipe

US$200.00-700.00 1 Set (MOQ)

Basic Info.

Model NO.
SDC400
Blade Material
Carbon Steel
Handle Material
ABS
Blade Type
Curved
Brand
Suda
Size
400mm
Feature
Electric
Blade Tip
Stainless Steel
Color
Green
Condition
New
Warranty
1 Year
Free Parts
Yes
Cutting Thickness
8-45mm
Speed
2900 R/Min
Packing
Inside Backpack, Outside Carton
Usage
Tube Cutter
Cutting Diameter
15~400mm
Power
1000-1750W
Weight
18kgs
Blade
Common Blade, Stainless Steel Blade
Operate Video
Yes
Free Blade
Yes
Plastic Pipe Cutting
Yes
Metal Pipe Cutting
Yes
Technical Support
Yes
Transport Package
1 PC
Specification
15mm-400mm
Trademark
SUDA Machinery
Origin
China(Mainland)
HS Code
85152900
Production Capacity
5000/Sets/Months

Product Description

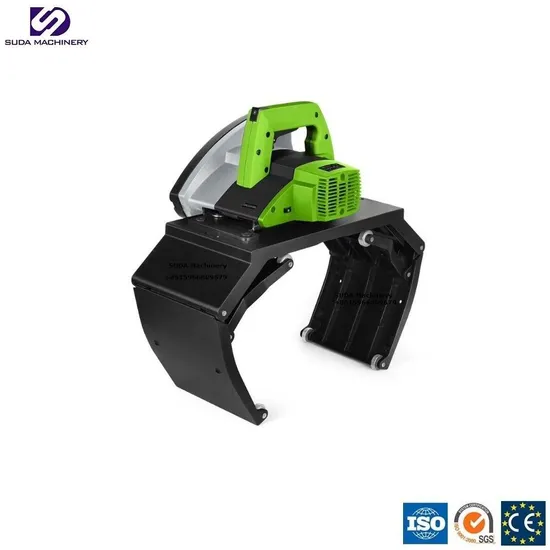

SDC400 Portable Orbital Pipe Cutting/Portable Plastic Pipe Tube Cutter/HDPE Pipe Cutter /Electric Pipe Cutter
=====>>Specification
Professional pipe cutting machine, more accurate cutting and more efficient work. easy to carry. The weight of the whole machine is 7.5 kg.
The 220 model can cut pipes in the range of 15mm ~ 220mm in diameter. The wall thickness of steel pipes is 8mm, the thickness of plastic pipes is 12mm, and the thickness of stainless steel is 6mm. No noise and no spark during cutting. The cutting surface is smooth without burrs, the workpiece is not deformed, and the cutting speed is fast.
The 400 model has a cutting range of 75 mm to 400 mm, a steel pipe cutting wall thickness of 10 mm, and a plastic pipe cutting wall thickness of 35 mm. You can design your own cutting plan.
=====>> Data Sheet
Model SDC220 SDC400
Cutting Range 15mm~220mm 75mm~400mm
Cutting Thickness Steel Pipe 8mm 10mm
Plastic Pipe 12mm SDR11,SDR13.5,SDR17
Stainless Steel Pipe 6mm 8mm
Power 1000w 1750w
Rotate speed 3200r/min 2900r/min
Voltage 220V,50Hz 220V,50Hz
Standard Configuration: pipe cutter 1set, saw blade 1pc,holder with wheels 4pcs,tools 1set,canvas bag 1pc.

=====>> Package Information
Model Gross Weight (kg) Net Weight(kg) Carton Dimensions(LXWXH)
SDC220 ( 15-220mm) 13kgs 7kgs 53*24.5*27.5CM
SDC400 (75-400mm) 18kgs 11.5kgs 73*28*30CM

=====>> Configuration
=====>> Saw blade installation
=====>> Factory Show
=====>> Cutting Picture
=====>> Application
