Novel in Design Alu Profile Double Head Cutting Saw

Product Description

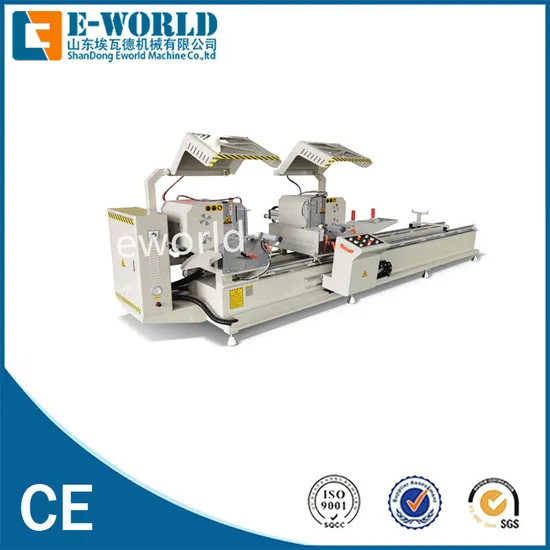

450*3700A Two Head Aluminum Cutting Saw for Window and Door
Product Description
Double-head Saw machine is used for cutting aluminum profiles. The main spindle is manufactured by the specialized manufacturer. And the imported linear bearing motional pair is used to move the head horizontally. The blade feeding is hydraulic damping drive with large processing range. And the maximum cutting length is 3700mm. The cutting angle is 45° and 90°.
Features :
1. Imported carbide saw blade gives accurate processing and high endurance.
2. Imported linear guide rail and linear bearing motion pair ensures steady processing accuracy. 3. Saw blade rotates smoothly due to high accuracy main shaft.
4. Uniform speed feeding and smooth motion due to airdraulic damping.
5. Auto-opening guard shield ensures saft operation.
6. Auto-induction middle profile supporter and following convenient mak the loading and clamping convenient.
7. Adopts imported linear guide pair,with high accuracy and long service life. 45°and90°cutting is available.
Product Parameters

Input voltage	230/460V /3/60Hz
Input power	3Kw
Air pressure	0.5~0.8MPa/ 120psi
Air consumption	60L/min
Motor rotation speed	2800r/min
Cutting length	400~3700mm
Cutting length tolerance	+ 0.005mm
Cutting angles	90, 45
Cutting width	10~120mm
Cutting height	10~200mm
Saw feeding speed	0~3m
Saw blade standard	450mmx4.4x30xZ120
Overall dimensions	4.5x1.2x1.4M

Company Profile
FAQ
1.Question:Are you manufacture?
Answer: Yes,we are professional manufacture which have more than 5 workshops.
2.Question: How about the service ?
Answer:
(1) Reply it within 12 hours if it from Ali-trademanager or email .
(2) Deliver max within 15 days.
(3) 24 hours for after -sale service.
(4) More than 12 years experience in this kind machine field.
(5) Fluent English ,communication barrier free.
3.Question:What's the guarantee ?
Answer:
(1) Our guarantee is 12 months.
(2) 24 hour's technical support by email or calling.
(3) English manual and video tutorial.
(4) 2 years quality guaranty for the machine (excluding the consumables).
(5) We will provide the consumable parts at an agency price.
(6) 24 hours on line service each day, free technical support.
4. Question: Do you provide equipment operation training?
Answer: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
5.Question:if our price is higher than another company or factories ?
Answer: Please check the different of the machine parts ,service and guarantee,especially the machine inner electric parts, sometimes, if machines have breakdown, the most reason is the machine inner electric parts problem, but we use the famous and reliable parts for the machines inside.
6.Question:How long is the delivery time ?
Answer: For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 30 days.
7.Question: What is the payment ?
Answer: Any payment method you want,such as L/C,T/T,D/P,West-union and so on.

---
