China High Quality Three Dimensional Blender Machinery Mixer Mixing Machine for Food & Chemical & Pharmaceutical Industry

Product Description

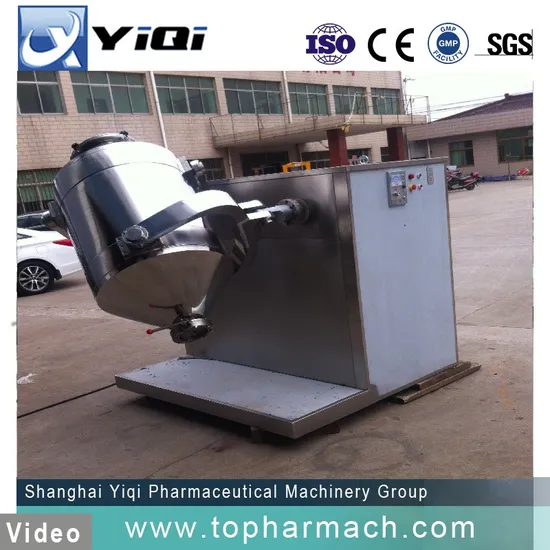

SBH Tumbler Blender

Application and features

This machine is suitable for blending dry-powder material of pharmaceutical, chemical and food industries. It is used in blending evenly and quickly between different proportion and fineness of materials.
This tumbler blender could be used for magnetic materials, non-ferrous and rare metal powder, tungsten carbide, tungsten alloy, and scientific research units for blending the high density and high uniformity powder materials.

With its unique three-dimensional swing, parallel moving and rolling methods, the mixer can generate a strong pulse movement to push forward
and to mix target materials continuously.
The excellent blending effects are the result of its changeable vortex movement that possesses the energy grads inside.
It also has the merits of smooth running, low noise, high loading quantity and short blending time as well.
The machine is composed of base, frequency change motor, main axis, rotor and cylinder, etc.
The cylinder container will carry on parallel moving and rolling under the driving of main axis, thus to push the material moving in the direction of circle, radical and axially, achieving uniform blending of different varieties of materials.

ITEMS	SBH-500	SBH-1200
Rotation Speed of blender(RPM)	0-12 (electromagnetic speed adjustment)	3-8
Overall dimensions(mm)	2000×2450×1850	2780×2950×2570
Loading coefficient	0.4~0.6	0.4~0.6
Material granules(µm)	40~3000	40~3000
Working conditions	Normal temperature, normal pressure, and dust seal	Normal temperature, normal pressure, and dust seal
Working capacity per batch(kg)P=1g/cm3	250	400-700
Motor (kw)	5.5 KW	11KW
Blending time(min)	4~15(it depends on different materials)	4~15(it depends on different materials)
Material of blending barrel	SS316δ4mm	SS316 δ6mm
G.W(kg)	1500	2650

We provide all kinds of pharmaceutical machinery and packing machines, welcome to check with us.
Thanks!

---
