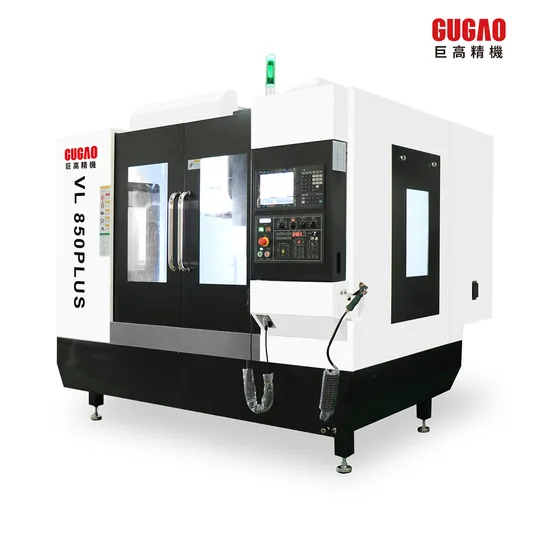

CNC 3/4/5 Axis Vertical Milling Machining Center (Drilling/Turning) Machinery China High Speed Spindle Machine for Boring/Engraving (VL850PLUS) (bare machine)

Product Description

Detailed Photos
Product Description
VL850PLUS Production Description
Whole machine: The machine tool adopts a column fixed and cross slide moving structure. The X, Y, and Z axes adopt linear rolling guides, and the whole machine has high rigidity, high stability and high reliability. The large flow fully enclosed protection has beautiful appearance and is easy to operate and maintain.
Spindle box: It adopts a high-speed spindle unit, the spindle taper hole is BT40 specification, and has a central blowing function.
Tool magazine: The tool magazine adopts a disc-type tool magazine with reliable quality and stable performance.
Drive: The three-axis motor and high-precision ball screw adopt a direct drive method. The ball screw is pre-stretched and installed to improve the transmission rigidity and positioning accuracy. The three linear coordinate axes all adopt linear rolling guides. The machine tool has small vibration when feeding at high speed and no creeping when feeding at low speed.
Main Paremeters

Name		Unit	Parameter
Travel	Three axis travel	mm	850/540/520
	Distance from spindle end face to worktable center	mm	125~645
Worktable	Worktable Size(L×W)	mm	1000×500
	Maximum load-bearing capacity of worktable	kg	550
	T-shaped slot (width × spacing × quantity)	mm	18×100×5
Spindle	Spindle diameter Spindle bore taper		∅150/BT40
	Max. spindle speed	rpm	12000
	Motor power	kW	7.5/11
Feed Speed	Three axis fast moving speed(X/Y/Z)	m/min	48/48/48
	Three axis feed speed	m/min	10/10/10
Magazine	Magazine capacity		24
	Max tool diameter/length/weight		∅75mm/300mm/7kg
	Maximum tool diameter (full tool/adjacent empty tool)	mm	75/150
	Tool exchange time (T-T)	s	1.8
Accuracy	(X/Y/Z) Positioning accuracy	mm	0.008
	(X/Y/Z) repositioning accuracy	mm	0.005
Others	Air source/pressure		280L/min 6~8 Bar
	Total electrical capacity	KVA	20
	Water Tank Volume	L	400
	(X×Y×Z)Machine size (X×Y×Z)	mm	2500×2700×2730
	Estimated weight	kg	4900

---
