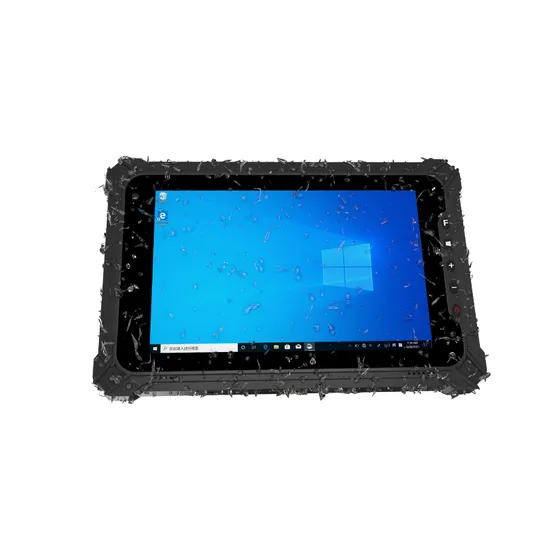

8 Inch Industrial Rugged 1920*1200 Touch Screen Windows Smart Tablet PC with 1d 2D Scanner NFC 4G LTE Q802

Product Description

Product DescriptionQ802
8 Inch Rugged Tablet PC based on Intel processor
IP65 protect + 1.22M Drop | Durable display with Gorilla glass III | Intel CPUThe Q802 rugged tablets are housed in durable rubber, with raised corners that protect the tablet from drops and shocks. And it is MIL-STD-810G rated and IP65 waterproof rated, so rain and humidity will not damage the tablet .- Windows 10 with Intel Processor Rugged Tablets
- 1200*1920 FHD Display,Gorilla glass III Touch Screen
- Built-in WiFi, 4G LTE, BT 4.2 and GPS
- 5.0 MP front and 8.0 MP Rear Camera (with LED auxiliary light, -Auto Focus)
- 4 GB RAM + 64 GB eMMC
Product Parameters

Operation System
OS	Windows 10 home/pro/iot
CPU	Intel cherry Celeron N5100 ,4M Cache, up to 2.80 GHz
Memory	4 GB RAM / 64 GB Flash (8+128GB optional)
Languages support	English, Simplified Chinese, Traditional Chinese, Japanese,Spanish, German, French, Italian, Portuguese, Korean and multiple languages
Hardware specification
Screen Size	8 inch color 1920 x 1200 display,up to 550 nits
Touch Panel	Gorilla glass III with 5 points Capacitive Touch Screen
Buttons / Keypad	5 Function Keys: Power, V+,V-, F, H
Camera	Front 5 megapixels , rear 8 megapixels, with flash and auto focus function
Indicator Type	LED, Speaker, Vibrator
Battery	Rechargeable li-ion polymer, 5000mAh
Symbologies
Scanner	Document and barcode scan via CAMERA
HF RFID (Optional)	Support HF/NFC Frequency 13.56Mhz ISO/IEC14443,ISO/IEC15693,MIFARE,Felica Read distance:3-5cm, Front
Laser barcode scanner	Optional
High precision GNSS module (optional)	Sub meter level,positioning accuracy:0.25-1 seconds,Support Beidou,GPS,GLONASS
Communication
Bluetooth®	Bluetooth®4.2
WLAN	Wireless LAN 802.11a/b/g/n/ac, 2.4GHz and 5GHz Dual Frequency
WWAN	GSM: B3,B8 WCDMA: B1/B5/B8 LTE:B1/B3/B7/B8/B20 TDD-LTE :B40
GPS	GPS/BDS/Glonass, error range ± 5m
I/O Interfaces
USB	USB 3.0 Type-A x 1, USB Type-C x 1
POGO PIN	Bottom 12PIN POGO PIN *1
SIM Slot	Single SIM Slot
Expansion Slot	MicroSD, up to 256 GB
RJ 45	10/100/1000M x1
HDMI	Support
Power	DC 19V 3.42A ∮3.5mm power interface x1
Enclosure
Dimensions ( W x H x D )	236.7 x 155.7 x 20mm
Weight	910g (with battery)
Durability
Drop Specification	1.2m, 1.5m with boot case ,MIL-STD 810G
Sealing	IP65
Environmental
Operating temperature	-20°C to 50°C
Storage temperature	- 20°C to 70°C (without battery)
Charging temperature	0°C to 45°C
Relative Humidity	5% ~ 95% (Non-Condensing)
What comes in the box
The standard package contents	Q802 Device USB Cable Adaptor (Europe)
Optional Accessory	Hand Strap Charging docking Vehicle mount

Certifications
Company ProfileProfessional ODM industrial terminal designer and manufacturerShenzhen Hosoton Technology Co., Ltd. is a experienced player in R&D, manufacturing and marketing digital smart industrial equipment, such as Tablet PC, pipe endoscope camera, handheld PDA scanner and any other ODM industrial devices. Our products are widely applied to logistics, store management, municipal construction, finance etc.
FAQ1.How to order?
We will quote the price to customers after received their requests. After customers confirmed the specification, they will order samples for testing. After inspected all devices , it will be sent to the customer by air.
2.Do you have any MOQ (minimum order)?We don't have any MOQ and 1pcs sample order will be supported .
3.What is the payment terms?T/T bank transfer is accepted ,and 100% balance payment before goods shippment
4.What is your OEM requirement?You can choose multiple OEM services includes boot animation, color box design, change model name, logo label design and so on , and some of these services can be done for 1 qty.
5.How many years have you been established?We focus on the rugged mobile device industry over 9 years.
6.How long is the warranty?We offer 1 year warranty to all of our products, and we also provide extended warranty based on your requirements .
7.How long is the delivery time?Normally the sample devices could be delivered within 5 working day , and the bulk order will depend on the quantity .If you need a drop- shipping service, we are experienced and can ship directly from China to your customers.
8.What are the accessories?The default accessories of our rugged devices are chargers and USB cables. There are multiple optional accessories are available, such as vehicle mount, docking station, wireless mat, hand strap, and so on. Welcome to visit our product pages for more details!
9.How to repair the devices if any issues?We will offer online technical support for product issues. If the issues is non-human factor, we will send components and parts to customers to repair.
10.How to install multiple functions into 1 device?You can ask us to install the 2D scanner, RFID, and high accuracy GPS module into the rugged device before shippment ,also we could provide ODM service for some specific function.
11.What kind of software support I can get?Hosoton provided lots of tailor-made rugged solutions to customers, and we can also provide SDK, software online upgrade , etc.
12.What kind of services can you provide?There is two services models for your option ,One is OEM service ,which is with customer's brand based on our off-the-shelf products ,the other is ODM service according to the individual demands ,which included Appearance design ,structure design ,Mold development ,software and hardware development etc.

---
