| US$1,350.00-1,900.00 | 1 Piece (MOQ) |

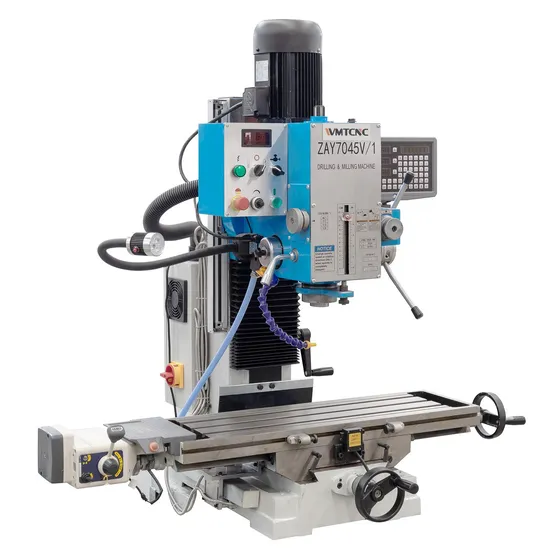

| Item | Unit | ZAY7032V ZAY7040V ZAY7045V | ZAY7032V/1 ZAY7040V/1 ZAY7045V/1 | |||||
| Max.drilling capacity | mm | 32 | 40 | 45 | 32 | 40 | 45 | |
| Max Face mill capacity | mm | 63 | 80 | 80 | 63 | 80 | 80 | |
| Max End mill capacity | mm | 20 | 32 | 32 | 20 | 32 | 32 | |
| Distance from spindle nose to table | mm | 400/400/450 | 450 | |||||
| Min.distance from spindle axis to column | Mm | 260 | 260 | |||||
| Spindle travel | Mm | 130 | ||||||
| Spindle taper | mm | MT3,MT4 or R8 | ||||||
| Range of spindle speed(2 steps) | 100-530R.P.M, 530-2600R.P.M | |||||||
| Auto-feeding step of spindle | 6 | |||||||
| Automatic feeding amount of spindle | Mm/r | 0.06-0.30 | ||||||
| Swivel angle of headstock (perpendicular) | ° | 90 | ||||||
| Table size | mm | 800x240 | ||||||
| Forward and backward travel of table | mm | 175 | ||||||
| Left and right travel of table | mm | 500 | ||||||
| Motor power(AC) | KW | 1.1 | 1.1 | 1.5 | 1.1 | 1.1 | 1.5 | |
| Net weight//Gross weight | KG | 300/350 | 310/360 | |||||
| Packing size | 770x880x1160mm | |||||||
