Automatic Drinking Water Liquid Bottle Washing Filling Capping Plant Machine

Product Description

Automatic PET Bottle Water Filling Machine
Product Description:
Model:RFC-50-50-15 (50 washing heads, 50 filling heads, 15 capping heads)
Production capacity : 24000BPH for 500ml
Application range: 200ml to 2000ml
Function Description:

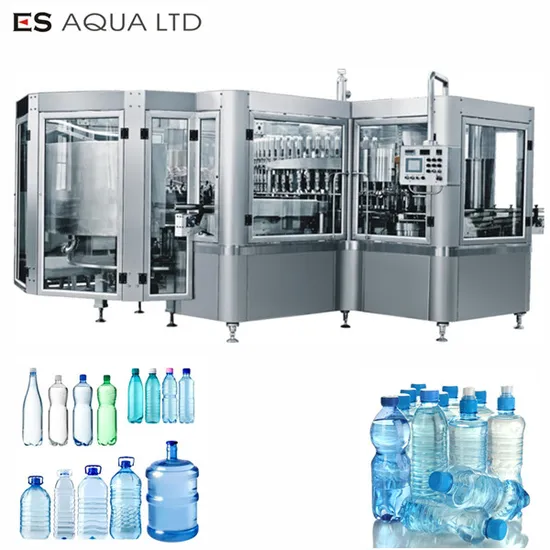

The machine is a full-automatic multiple-function washing, filling and capping unit. It is used in washing. filling and sealing all kinds of non-air drinks such as fruit juice, oil & vinegar, wine, fruit wine, mineral water and pure water. The line has features of unique design, new style, complete functions, multi-purpose, convenient in operation, beautiful construction, high automatization. It is the best filling equipment in China.
Specification Details:

Item	Water production line device
Numbers of working position	50-50-15 50heads washing, 50 heads filling,15 heads capping
Production Capacity	6000-24000@ 200-2000ml
Bottle Size	Diameter=50~108mm, H=170~340mm, 330~2.25l
Spraying Pressure	2~3 Kg/cm2
Motor Power	Main motor: 1.5KW
Power of Outer Vacuum Pump	0.75kw
Machine Size	2,100 x 1,400 x 2,500 mm
N.W.	2500 Kg
Body Material	SUS304 stainless steel
Inverter & PLC	Japan Mitsubishi
Air Valve	Taiwan AirTac
Capping Technique	Italy AROL
Heads of Washing & Filling	Ozone-resisting material
Filling Valve	304L stainless steel
Washing Pressure	0.2~0.25MPa
Bottle Clip & Fill	Bayonet style
Sealing Technique	Italy AROL sealing technique, revolve lids with magnetic force which down the wastage rate greatly.

Details of Machine:
Related Products:
Packaging & Shipping:
Company Information:
ES AQUA LTD is engaged in professionally researches, develops and manufactures beverage-packaging machinery and dairy packaging machinery. We bought several sets numerical control machines from American and Japan. The fixed assets of ESAQUA exceed USD 50 million. Since its foundation, ES AQUA has concentrated on a single area of beverage and water product packaging machinery. Recently, we already finished some researches and were going on some project, including "automatic high speed aseptic filling machine of liquid food", which is the state torch program, "mono-block filling machine of juice with pulp", "liquid milk & beverage continuous high-speed packing robot" etc. We took part in national standard making, and then we became the leader in the industry. Moreover, we cooperated with foreign and domestic famous enterprises, such as Pepsi, Bright Dairy, Robust, etc, also our products are exported to all over the world. The company always hold the philosophy of "the quality wins the market, the brand forms the success". We, full of enthusiasm and sincerity, warmly welcome domestic and overseas customers.
Main product of ES AQUA: The capacity is from 2000BPH to 36000BPH for hot filling, mid-temp filling, and aseptic cold filling lines. The capacity is from 2000BPH to 36000BPH for mineral water and pure water product line. The capacity is from 2000BPH to 20000BPH for carbonated beverage product line. The capacity is from 8000 to 15000 packs per hour for brick pack of aseptic milk packaging product line. The capacity is from 2000BPH to 30000BPH for beverage with particle product line. There are water treatment equipments. PET blow molding machine Beverage pre-blending and sterilizing system
Our Services: What service ES AQUA LTD can offer you?
Your inquiry related to our product & price will be replied within 12 hours.
Well-trained & experienced staff are to answer all your inquiries in English and Chinese.
Working time: 8:00am ~10:00pm, Monday to Saturday(UTC+8).
OEM & ODM projects are both available.
Your business relationship with us will be confidential to any third party.
Good after-sale service offered, please get back to us if you got any questions.
After Sales Service
One year warranty for the whole system .
Free equipment installation and debugging.
After one year , we can help you to maintain the machine and the accessories are provided
only one the cost price.
We can provide internship service and help you train the operator and mechanic.
Free production technology and process configuration.
We can help you to design the product line , workshop and provide turn-key project.
FAQ:
1.Do you supply Free samples (preform or cap)?
A: Yes, we can provide you free sample if there are in stock,but we don't include the delivery charge.
2. Can your factory provide the whole plant from A to Z?
A: Yes, we can provide a complete plant from blowing plant , water purification plant to filling & packing plant.
3. Are all machinery your factory made?
A: Yes, Our factory made the water purification plant and filling & packing plant, we do not make the bottle making machine, but we have good quality bottle making machine partner, and we can provide to customer same long warranty time and good after service.
4. How can I know the machinery quality before I order?
A: Firstly, we will invite you visiting our factory to cherk the machines quality, and show the machines running for you in our factory
5. What certification you can provide?
A: Our factory can provide the CE,ISO,ETC,which will according to some counties, we also can provide Pvoc,Coc,Soncap…and so on.
6. Can you factory make the bottle drawing, factory layout and label designs for us?
A: We can help customers design their owner bottle shape, workshop and label drawing, there jobs are free charge. (Workshop need customer to provide the size of factory )
7. Installation and Training time
A: We have professional engineer for oversea installation and training who have much experience oversea work.

---
