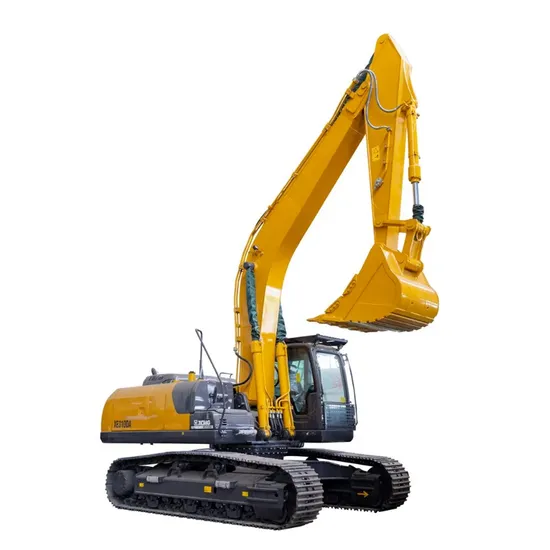

Xe310da Hydraulic 31 Tons 30tons Medium Crawler Excavator

Product Description

Product Description
*The Hydraulic Medium Crawler Excavator 31 Tons XE310DA is a powerful and reliable machine designed for heavy-duty excavation tasks.
*With a weight of 30 tons, this excavator offers superior stability and performance on various job sites.
*Equipped with advanced hydraulic technology, it provides smooth and precise operation for increased productivity.
*The XE310DA features a spacious cabin with ergonomic controls for operator comfort and efficiency.
*Its durable construction and high-quality components ensure long-lasting durability and minimal maintenance requirements.
*Whether you're working in construction, mining, or landscaping, the Hydraulic Medium Crawler Excavator 31 Tons XE310DA is the perfect solution for your excavating needs.

Model	XE310DA
Operating weight	31500kg
Bucket capacity	1.4~1.6m³
Number of cylinders	6
Rated power/speed(ISO)	169/2050kw/rpm
Maximum torque/speed	895/1250n.m
Piston displacement	6.7L
Travel speed(H/L)	5.2/3.1km/h
Swing speed	10.5r/min
Gradeability	≤35°
Bucket digging force	211kn
Arm digging force	138kn
Maximum tractive force	260kn
Rated flow of main pump	2×296L/min
Relief valve setting pressure	34.3/37mpa
Travel system pressure	34.3mpa
Swing system pressure	30mpa
Pilot system pressure	3.9mpa
Fuel tank capacity	520L
Hydraulic tank capacity	270L
Engine oil capacity	26L
Overall length	10645mm
Overall width	3190mm
Overall height	3410mm
Width of platform	3050mm
Track length	4944mm
Overall width of undercarriage	3190mm
Track shoe width	600mm
Tumbler distance	4028mm
Track gauge	2590mm
Counterweight clearance	1198mm
Minimum ground clearance	538mm
Minimum tail swing radius	3200mm
Track height	1084mm
Maximum digging height	10146mm
Maximum dumping height	7180mm
Maximum digging depth	7200mm
8Maximum depth cut for 8 ft level bottom	7000mm
Maximum Vertical digging depth	5190mm
Maximum digging radius	10665mm
Minimum swing radius	3076mm
Length of boom	6200mm
Length of arm	3110mm
Bucket capacity	1.4m³
Length of arm	2650mm
Bucket capacity	1.6m³
