Ship Black Carbon Steel U2/U3 Grade Anchor Chain for Sale

Product Description

Stud / Studless anchor chain with enlarge link ship anchor chain
Material: Steel bar :CM390,CM490,CM690
1, Variety: Grade1, grade 2,grade 3 stud link anchor chain; studless anchor chain; buoy chain,D-type anchor shackle; Hatch-cover chain,lifting chain,kiln chain and others; DIN Standard chain; Special chain as per your requirments and their accessories.
2,Relevant Certificates: ABS, BV, CCS, DNV, KR, LR, GL, NK and RINA etc.
3.Advantage of Stud link chain:
Originally studs were added to the chain to stiffen the links preventing them from severely deforming when overloaded. They have the added advantage in that they prevent the chain from knotting up when twisted, thus avoiding problems when chain is retrieved with a windlass.

Products	Common chains	Accessory
Details	All kinds of grades of marine stud and studless flash welded chains with diameter from 2mm to 122mm	All specification of Kenter shackles, Joint shackles, Anchor shackles, Swivels, Buoy shackles and Swivel shackles

Surface Treatments	Zinc Plated(Galvanized), Painting, Polish, Black
Material	Stainless steel 304 or 316, 20Mn2, 20MnSi ,Alloy
Standard	EUROPEAN TYPE,JIS TYPE, US. TYPE, DIN TYPE
Size	All kinds of type or according to customer's design
Heat treated	drop forged, tempered and quenched

Factory workshop:

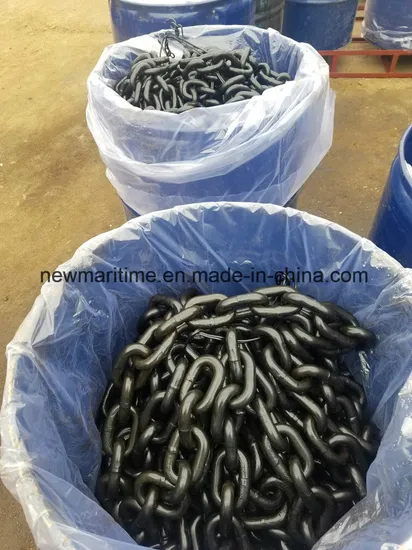

Package:

GRADE U1,U2,U3 BLACK COATED STUD LINK ANCHOR CHAIN
Dia.	Proof load(KN)			Breaking load(KN)			Weight
MM	AM1	AM2	AM3	AM1	AM2	AM3	kg/27.5m
17.5	89	127	179	127	179	256	194
19	105	150	211	150	211	301	236
20.5	123	175	244	175	244	349	269
22	140	200	280	200	280	401	322
24	167	237	332	237	332	476	370
26	194	278	389	278	389	556	431
28	225	321	449	321	449	642	496
30	257	368	514	368	514	735	564
32	291	417	583	417	583	833	635
34	328	468	655	468	655	937	712
36	366	523	732	523	732	1050	800
38	406	581	812	581	812	1160	887
40	448	640	896	640	896	1280	1032
42	492	703	981	703	981	1400	1084
44	538	769	1080	769	1080	1540	1197
46	585	837	1170	837	1170	1680	1310
48	635	908	1270	908	1270	1810	1438
50	686	981	1370	981	1370	1960	1546
52	739	1060	1480	1060	1480	2110	1661
54	794	1140	1590	1140	1590	2270	1791
56	851	1220	1710	1220	1710	2430	1926
58	909	1290	1810	1290	1810	2600	2086
60	969	1380	1940	1380	1940	2770	2249
62	1030	1470	2060	1470	2060	2940	2361
64	1100	1560	2190	1560	2190	3130	2516
66	1160	1660	2310	1660	2310	3300	2676
68	1230	1750	2450	1750	2450	3500	2885
70	1290	1840	2580	1840	2580	3690	3010
73	1390	1990	2790	1990	2790	3990	3274
76	1500	2150	3010	2150	3010	4300	3548
78	1580	2260	3160	2260	3160	4500	3737
81	1690	2410	3380	2410	3380	4820	4030
84	1800	2580	3610	2580	3610	5160	4334
87	1920	2750	3850	2750	3850	5500	4650
90	2050	2920	4090	2920	4090	5840	4976
92	2130	3040	4260	3040	4260	6080	5199
95	2260	3230	4510	3230	4510	6440	5544
97	2340	3340	4680	3340	4680	6690	5780
100	2470	3530	4940	3530	4940	7060	6143
102	2560	3660	5120	3660	5120	7320	6398
105	2700	3850	5390	3850	5390	7700	6773
107	2790	3980	5570	3980	5570	7960	7033
111	2970	4250	5940	4250	5940	8480	7569
114	3110	4440	6230	4440	6230	8890	7983
117	3260	4650	6510	4650	6510	9300	8409
120	3400	4850	6810	4850	6810	9720	8863
122	3500	5000	7000	5000	7000	9990	9143
124	3600	5140	7200	5140	7200	10280	9598
127	3750	5350	7490	5350	7490	10710	9908
130	3900	5570	7800	5570	7800	11140	10382

---
