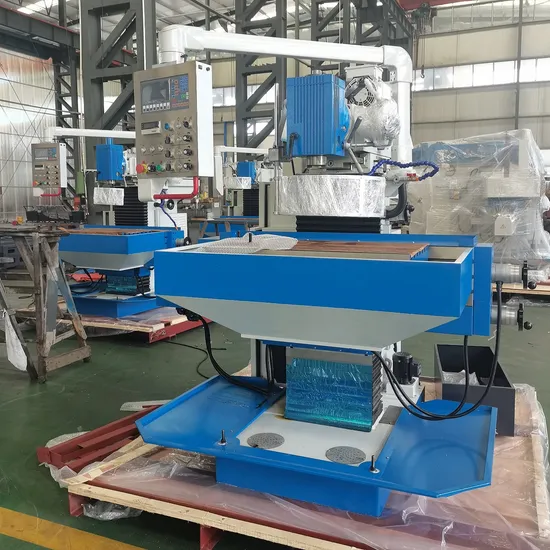

XL8145 High Precision Conventional Vertical Horizontal Universal Drilling Milling Machine

Product Description

XL8145 High Precision Conventional Vertical Horizontal Universal Drilling Milling Machine
Product Description
Δ Spindle:
√ step-less spindle speed, in high & low speed ranges, suitable for high-speed-fine-machining & low-speed-powerful-machining
√ vertical & horizontal spindles combined, for flexible operation
√ 60mm spindle stroke, milling and drilling functions are available

Δ Working feed:
√ X/Y/Z-axis ball screws, good precision
√ X/Y/Z-axis driven by 3 independent servo motors, can realize X/Y/Z-axis synchronous feeding
√ servo motors for spindle and feeding, machine with low noise, good precision, easy to maintenance
√ X/Y/Z-axis with electronic handwheels, for easy and precise manual-feeding
√ vertical & horizontal combined work-tables, for flexible clamping of workpiece
√ fitted with automatic centralized lubrication system, for automatic timing lubrication


Product Parameters

Items	XL8132	XL8140	XL8145
Working area
Worktable size (L×W)	750x320mm	800x400mm	850x450mm
T slot (Width x No. x pitch)	14x5x63mm	14x6x63mm	14x7x63mm
Vertical table size	890x225mm	1020x225mm	1190x250mm
T slot (Width x No. x pitch) Vertical table	14x3x63mm
Max. load of table	160kg	200kg	300kg
Torque of feed motor (X)	7.7Nm	7.7Nm	10Nm
Torque of feed motor (Y)	7.7Nm	7.7Nm	10Nm
Torque of feed motor (Z)	10Nm	10Nm	15Nm
Spindle axis-to-table surface distance(Horizontal)	145-545mm	145-545mm	170-620mm
Spindle nose-to-table surface distance(Vertical)	50-450mm	50-450mm	75-525mm
Travels
Longitudinal travel (X)	405mm	500mm	600mm
Transverse travel (Y)	305mm	400mm	450mm
Vertical travel (Z)	400mm	400mm	450mm
Feeds of X Y Z axis	10-1000mm/min
Rapid feed	1200mm/min
Spindle
Spindle speed (V&H)	2 steps; 40-260rpm, 260-2000rpm
Spindle taper (V&H)	NT40
Vertical quill travel	60mm
Main motor power	3.7kW	3.7kW	5.5kW
Others
Machine size (L×W×H)	1500x1700x1800mm	1500x1700x1800mm	1600x1800x2000mm
Net weight	1450 kg	1550 kg	1750 kg

Standard Configuration

No.	Item	Specification
1	automatic centralized lubrication system	-
2	water cooling system with spray nozzle	-
3	CE Schnider electrical components	-
4	LED work lamp	-
5	supporting frame for horizontal milling	-
6	draw bar	-
7	horizontal milling arbor	Ø16, Ø22, Ø27, Ø32
8	reducer sleeve	MT1, MT2, MT3
9	milling chuck set	2, 3, 4, 5, 6, 8, 10, 12mm
10	tools & metallic tool box	-

Optional Configuration

Packaging & Shipping
Delivery time: generally 3 months production time after confirmation of order
Packing type: machine is covered with damp-proof plastic film, then packed in plywood case (with steel pallet)
Packing size: 2100 x 1900 x 2250mm (L / W / H), can be delivered in 20GP container.
Certifications
Products are strictly according to Europe standard, with CE certificate
Company Hot Products Link


FAQ
1. What is the MOQ ?
Minimum order quantity is 1 set.
2. What is the payment term ?
Usually we prefer T/T. 30% deposit, 70% balance payment against machine ready to delivery photos and videos.
Other payment terms are also acceptable after discussion.
3. What is the trade terms ?
Usually is FOB.
Others like CIF, CFR, EXW...... are also acceptable.
4. How long is the guarantee ?
12 month after machine's delivery from factory.
Within warranty, we guarantee spare parts free of charge and online supports for installation, operation, maintance and trouble shooting etc.
5. What kinds of machines do you supply?
Company specialized in producing CNC & manual milling machines. Include:
CNC gantry machining center
Vertical machining center
Simple NC milling machine
Conventional manual milling machines (Vertical, Horizontal, Universal, Turret mill, Swivel head mill, Power sliding ram type, Bed type, Tool milling machine, Gantry type etc.)
5. How can I believe your company ?
XILI Machine Tool has more than 20 years milling machine production history, covers an area of about 50000 square meters, with 20 million CNY fixed assets and more than 200 employees.
Xili Machine Co., Ltd. is a ISO9001 company, all products are with CE certificate.
Welcome your inquiry and visiting.

---
