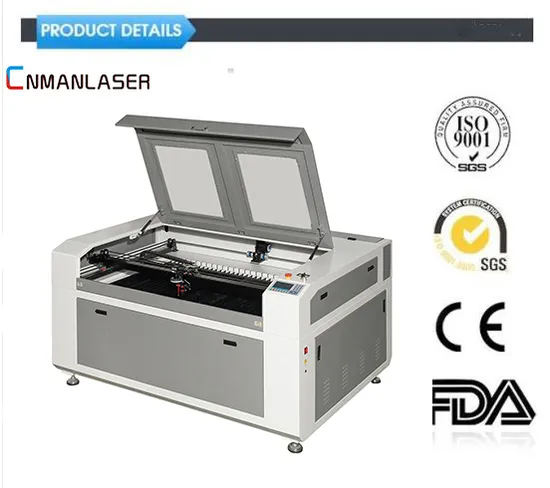

1390 Mini Laser Engraving Nonmetal Machine Laser Engraving Machine for Guns

Product Description

6090 Mini Laser Engraving Nonmetal Machine Laser Engraving Machine For Guns
TECHNICAL PARAMETER :

Model	MAN-130090
Working area	1300*900mm
Laser Type	Hermetic CO2 glass tube
Power supply	AC220/110, +-10%
Max moving speed	0-25000mm/Min
Worktable	honey comb/aluminium knife/(optional)
Locating precision	<0.01mm
Mini Shaping character	character:3x3mm, letter:2x2mm
Operating temperature	5-35 centigrade
Resolution ratio	≤4500DPI
Control configuration	DSP
Data transfer interface	USB(offline)
System environment	windows2000/XP/Vista/Win7/Win8/win10
Cooling way	water cooling and protection system
Graphic format supported	the files which CorelDraw, Photoshop, AutoCAD can identify(BMP, GIF,JPGE, PCX, TIFF,PLT, CDR.DMG etc.)
Compatible software	CorelDraw, AutoCAD
Cutting thickness	0-30mm(depends on different materials)
Color separation	up to 256 colors
Protection when water supply stops	yes
Net weight/ gross weight	400kg
Optional parts	high grade cooling system CW5000/double-head/rotary axis

Advantage :
1. CO2 Sealed glass Reci laser tube.
2.Stepper Motor Module Combination,when this machine move in very high speed, it can make the machine stable, don't shake,
so the engraving and cutting precision is very high, the cut surface of acrylic almost no flow mark.
3.The laser path is very stable, once you fix it well, the laser path can keep stable for very long time,
so the user don't need adjust the laser path usually.
4. DSP controlling system, rich functions, can effect engraving on plane, gradient engraving by 360 degree, cutting and drilling holes etc.
It can completely work off-line and do not take any computer resources
5. Has the function of re-carving after break point and power failure.
6. Transmit files directly in Coreldraw, AutoCAD,etc.
7. Adopt High Speed guide rails, move very fast
8.Water chiller cooling system, can cool the laser tube well.
9. Has the function of forecasting process time.
10. Sub-divistion stepper motors
