Factory Price Bjz 64 Carrier High Speed Rubber Hose or Metal Hose Wire Braiding Machinery^

Product Description

Factory Price BJZ 64 carrier High Speed Rubber Hose or Metal Hose Wire Braiding Machinery^
Production Description
1. Control form: Automatic digital control (plc+ man-machine interface)
2. Drive motor: frequency conversion + servo motor (variable frequency control of braiding part, haul off servo drive)
3. Braided hose diameter (maximum) mm: Φ60
4. Spool capacity: 7~7.5KG
5. Braiding pitch: 30-179mm
6. Spindle speed r/min: 23 (design speed) 18 (actual working speed)
7. Total power: 14kw
8. The number of braiding layers at one time: 1 layer
9. Dimensions mm: 4027*1980*2450 (length * width * height)

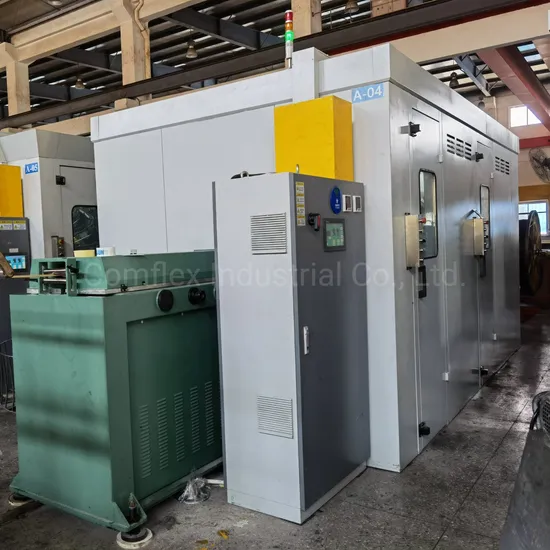

10. Noise reduction protection: full noise reduction protection room

BJZ High-speed wire braiding machine main tech parameters (Single Decker )
Product model	BJZ16	BJZ20	BJZ24	BJZ36
Spindle Rpm(r/min)	45	35	30	18
Max.Braiding diameter(mm)	10	13	25	51
Bobbin capacity(kg)	7.5	7.5	7.5	7.5
Braiding angle	54°44"	54°44"	54°44"	54°44"
Braiding angle	3765*1728*2150	3765*1728*2150	3765*1728*2150	4027*1980*2450

Spare Parts
Advantage
* The machine has high speed compared with the ordinary wire braiding machine, easy to operate and high high precision.
* The machine all adopt the automatic control, PLC+ man-machine dialogue interface and servo motor. Greatly improve the precision
of weaving. Reduce the operation difficulty of the workers.
* Fully enclosed structure to reduces the noise and improve the performance of workers safety equipment.
* The spools have large capacity, saves the steel wire waste and reduce the line frequency and improve work efficiency.
* No rubber stop alarm function.
* Break line stop alarm function.
* Fixed length function.
* Fault detection capabilities.
* Three color alarm prompt.
Supply high speed wire braiding machine
This is a new type of wire braiding machine manufactured by our company based on the US RB-TWO wire weaving machine. This machine adopts the principle of controlled rotation; the spindle is performed by circular track; it breaks through the principle
of 8 word handover machines at home and abroad; this machine is a new type of steel wire braiding machine with high technology
advanced technology.
Related Machine
ZHG High Speed Bobbin Winder

High speed Bobbin re- winding machine
Products Model	Take up Speed(m/s)	take-up control method	lay off control method	winding diameter	diameter of wire	dimensions (L*H*H)
CF12	10	PLC+human-computer interface	electric	Φ180	Φ0.2-Φ0.4	3658*1160*1840
CF18	10	PLC+human-computer interface	electric	Φ180	Φ0.2-Φ0.4	4533*1130*1840

Package & Delivery
Company
We are a professional manufacturer of steel wire braiding machine with more than 35 years of history. Our machines are widely used in many industries: rubber hose, cable and stainless steel metal hose manufacturing. The sizes cover 16 carriers from 128 carrier braiding machines, the wire diameter starts from 0.2 till 1.0mm. We have normal speed type, high-speed type, and super high-speed type, etc..Our braiding machines are horizontal types that enable heavy tensile strength.
Our Service
Our machines in customers' factory Site
FAQ 1. Why choose us as your supplier?
We are most professional in steel wire braiding machine with more than 30
years of experience
2. What wires can you machine braid?
1) Stainless steel wire
2) Copper coated steel wire
3) Cotton Wire
3. What application of your braiding machine?
Popular for both rubber hose and metal hose manufacturing
We need to know the following information to quote you the correct machinery:
1. What outer diameter of the hose you want to braid?
2. Wire diameter
3. Application
4. Do you have any requirements about production efficiency?

---
