Backpack Laser Cleaning Machine 50W Backpack Laser Rust Removal Machine

Product Description

Portable Pulse Laser Rust Removal 50W 100W Fiber Laser Cleaning Machine

Introduction:
FL-C50S/C100S/C200S Laser rust removal equipment is a suitcase-type machine. The outlook is the same as a travel case, which is very easy to take along and move. Also, the best demo machine to fly with you on airplane.
We also approved adding a Phone APP control system.
It can remove the grease, dirt, coating, paint, rust, residue, oxide layer, and other target materials with high efficiency, high performance, low cost and without harm to the base material.
Features:
1. Laser cleaning has no grinding, non-contact, no thermal effect, and is suitable for various materials, etc.
2. Rapid, clean and accurate cleaning;
3. No damage to the substrate;
4. High cleaning precision, strong control ability;
5. Can be used for a long time, low operating costs;

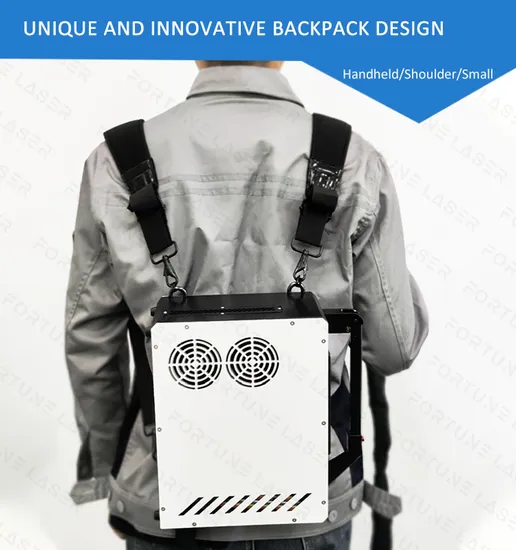

6. Light to carry on the shoulder for outside high position cleaning work;
7. Environmentally friendly, no pollution.
Applications:
Metal workpiece laser de-rusting, degreasing, laser paint removal, laser removal of zinc and film, laser coating removal, widely used in aerospace, mold, microelectronics, construction, nuclear power plants, automobile manufacturing, medical, etc.
What is the difference between a pulsed laser and a continuous laser?
Fiber laser source
(The laser source is divided into continues laser source and pulsed laser source in operation)
Pulsed laser source:
refers to a pulse pf light emitted by a laser source in a pulsed working mode.in short ,it is like the work of a flashlight.When the switch is closed and then immediately turned off,a "light pulse"is send out.Therefore,the pulses are one by one,but the instantaneous power is very high and the duration is very short.It is necessary to work in pulse mode,such as sending signals and reducing heat generation.The laser pulse can be extremely short and has an excellent effect in the field of laser cleaning machines,it does not damage the substrate of the object.The single pulse energy is high,and the effect of removing paint and rust is good.
Continuous laser source:
The laser source continues to provide energy to produce a laser output for a long time.Thus obtaining continuous laser light.Continuous laser output power is generally relatively low.Starting at 1000w.It is suitable for laser metal rust removal.The main feature is that is burns the surface and cannot whiten the surface of the metal.After cleaning the metal,there is a black oxide coating.In addition,it has a good effect for cleaning non-metallic surfaces.
In short:The best way to clean various workpieces (such as paint removal,rust removal,oil removal,etc)is to use a pulsed laser source.

The handle of the case is made of aluminum alloy, which is good in texture, light and durable. The arc design makes it easier to carry it. The mini case is only as big and light as a toolbox.Only 8kg
Laser head, lightweight to carry, easy to operate, output different share laser beam, like wave, circle and square.

Machine Parameters

Model	RL-C100S	RL-C50S
Laser source	Fiber	Fiber
Laser Power	100W	50W
Fiber cable length	3M	3M
Laser Wavelength	1064nm	1064nm
Pulse Energy	1.5 mJ	1mJ
Pulse frequency	1-4000KHz	1-1000KHz
Scanning speed	0-7000mm/s	0-7000mm/s
Cooling	Air cooling	Air cooling
Dimension	500*300*650 mm	300*160*450mm
Net Weight	33KG	18KG
G.W.	37KG	21KG
Beamwidth	10-100mm	10-70mm
Optional	Manual	Manual
Cleaning Head	Dual / Single Axis	Single Axis
Temperature	5-40 ºC	5-40 ºC
Voltage	Single Phase AC 220V, 50/60HZ	Single Phase AC 220V, 50/60HZ

	Laser cleaning	chemical cleaning	Mechanical grinding	dry ice cleaning	Ultrasonic cleaning
Cleaning method	Laser,non-contact	Chemical cleaning agent, contact type	sandpaper, contact	Dry ice, non-contact	Cleaning agent, contact type
Workpiece damage	no	yes	yes	no	no
Cleaning efficiency	High	low	low	medium	medium
Consumables	Only electricity	Chemical cleaning agent	sandpaper, grinding wheel	dry ice	Special cleaning agent
cleaning effect	spotlessness	general, uneven	general, uneven	excellent, uneven	Excellent, small range
Safety/environmental protection	No pollution	polluted	polluted	No pollution	No pollution
manual operation	Simple operation, handheld or automated	The process flow is complex, and the requirements for operators are high	Labor-intensive, protective measures are required	Simple operation, handheld or automated	Simple operation, need to manually add consumables
cost input	High initial investment cost, no consumables, low maintenance cost	Low initial investment and high cost of consumables	High initial investment and low cost of consumables	The initial investment is medium, and the cost of consumables is high	Low initial investment and high cost of consumables

---
