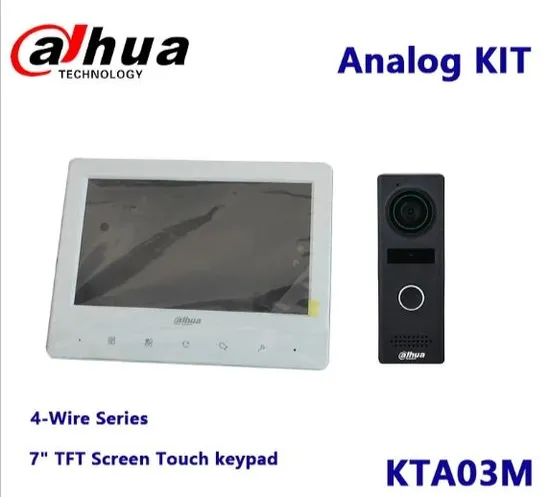

Dahua Video Intercoms Kta03m Video Intercom Analog Kit 7" TFT Screen

Product Description

KTA03M Video Intercom KIT

> 7" TFT screen
> Video intercom function: Unlock, voice call, video call, volume adjustment, doorway monitoring
> System Capacity:2 door stations + 3 indoor monitors
> Multiple bell sounds
> Support digital wide dynamic range (DWDR)
> Take snapshots

Specifications

Technical Specification

Model

DHI-VTH1020J-T

System

Button Type

Touch keypad

Basic

Display

7.0" TFT

Resolution

1024 × 600

Indicator Light

1 indicator light; Green: Power on

Function

Communication Method

Analog

Performance

Casing

PC + ABS

General

Color

White

Power Supply

DC 12V/2A

Power Adapter

Included

Installation

Surface mount

Certifications

CE/FCC

Accessory

Bracket (included)

Dimensions

133.90 mm × 182.70 mm × 17.70 mm (5.27" × 7.19" × 0.70")

Operating Temperature

-10°C to +55°C (+14°F to +131°F)

Operating Humidity

10%RH-95%RH

Power Consumption

≤ 2W (standby) ≤ 5W (working)

Net Weight

0.25 kg (0.55 lb)

Gross Weight

0.48 kg (1.05 lb)

DHI-VTO1000JM

Button Type

Mechanical

Basic

Camera

1/4" 1.3 MP CMOS

Field of View

Horizontal: 70° Vertical: 40°

WDR

DWDR

Illuminator Type

Auto IR

Day/Night

ICR auto switch

Audio Input

1 channel to the microphone; pickup distance 0.5 m

Audio Output

1 channel to the speaker

Indicator Light

1 indicator light; Green: Power on

Function

Communication Method

Analog

Unlock Mode

Remote unlock

Casing

ADC12

Port

Unlock Button

1

Door Status Detection

1

General

Color

Black

Power Supply

Powered by indoor monitor

Installation

Surface mount

Certifications

CE/FCC

DHI-VTO1000JM

Accessory

Rain cover (included)

Dimensions

131.45 mm × 46.00mm × 33.80 mm (5.18" × 1.81" × 1.33")

Protection Grade

IP66 (Apply silicon sealant to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)

Operating Temperature

-30°C to +60°C (-22°F to +140°F)

Operating Humidity

10%RH-95%RH

Power Consumption

≤ 1W (standby) ≤ 3W (working)

Net Weight

0.18 kg (0.40 lb)

Gross Weight

0.40 kg (0.84 lb)

Packaging & Shipping FAQ 1)Why choose us?
Competitive Price: Our company has built up friendly relations with Dahua, Hikvision, and IMOU since 2015.and we work with factories directly.
Friendly and fast service: We have a professional tech-support team to deal with problems before and after sales. Don't be afraid if you meet problems. We are here!

2)When will you ship my order?
Products are popular, so inventory is constantly changing. Please contact us before you pay and we will confirm the date with you.

3)Can I install the security cameras by myself?
Of course! There is always a user manual in the packaging box. You can contact us directly if you meet any problems. We are here!
4)How about a warranty?
2-year warranty period(since the date you receive the order). some products are 3 years and some are 5 years, welcome to confirm with us.
5)How about the shipping cost?
Shipping cost depends on weight, we have a very cost-effective agent for you.
6)Your products sell to whom?
Retail and wholesale customers are both welcome.

If interested in this camera, please contact Lucas today with the latest information!

---
