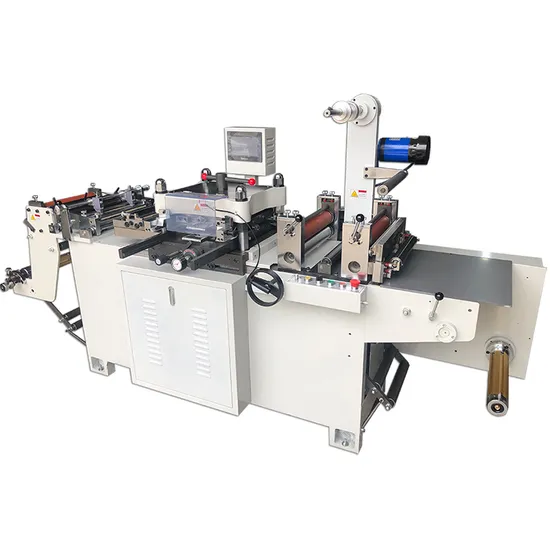

Automatic Sandpaper Die Cutting Machine

Product Description

High precision dacron film label die cutting machine
Application:
This die-cut machinery is applied in die cutting for adhesive sticker,protective film,electronic shielding material, PVC, Mylar, double sided adhesive, aluminum foil/copper foil, foam and all kinds of LCD diffuser, reflector plate, buffer plate, film, silicon adhesive tape .......
Main technical parameters:

Model	LT-350B	LT-420B
Die Cutting speed	20-300 cuts/min.	20-300 cuts/min.
Max. unwinding diameter	450mm	450mm
Max. web width	350mm	420mm
Max. die cutting size	330x330mm	420x420mm
Precision	±0.10mm	±0.10mm
Power	3kw	4kw
Voltage	380v	380v
Machine weight	2200kg	2800kg
Machine size	2600x950x1400mm	2600x1050x1800mm

Machine Features:
1.Multi-function in ONE machine: Laminating / partial laminating+unwinding+laminating+die cutting +discharging sheet cutting/rewinding
2.Photo Cell if necessary
3.Sucking device during material feeding process
4.Waste discharge shaft
5.Sheet cutting station
6.Rewinding station
7.Safety curtain device
8.Optional function: Conveyor belt device for full-cut use

After-sales Service
1. Warranty:1 year after you get the machine.
2. Promptly response within 24 hours in working days.
3. Free training before machine delivery and on-site training engineers available.

---
