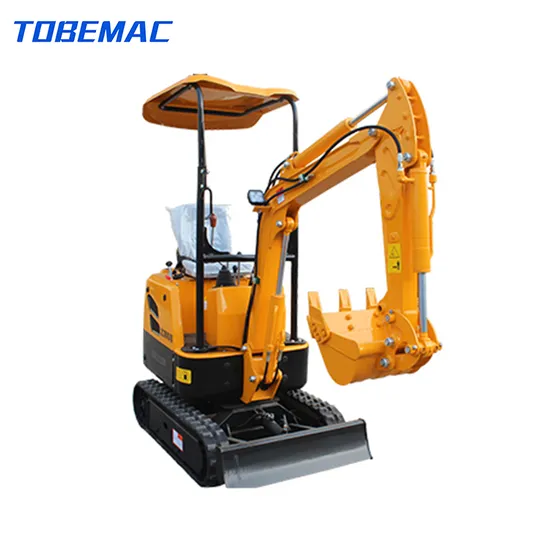

Import Mini Excavator for Exploitation and Construction Since 1991

Product Description

1.Why choose us?TOBEMAC----CHINA Leading Construction Machinery Manufacturer We are manufacturer of Concrete Mixers Since 1991. We are certified by SGS;BV;SONCAP;PVOC;CE; ISO 9001:2015 We have a Professional Construction Machinery workshop which covers an area of 10000 sqm and its daily output for CONCRETE MIXER is 50 sets , so we can assure you the punctual delivery. Our main products include all kinds of Diesel Concrete Mixer,Electric Concrete Mixer,Concrete Mixer Truck, Hoisting Machinery, Road Machinery,Compactor Machinery,Block Machinery , and etc. Our company is near the NINGBO port , you are very welcome to come to our company.
2.Products Specification:
We are leading factory with almost 30 years in machinery export business, engoy an excellent reputation in circle of construction equipment. Also, we participate in the Canton Fair every year. We sincerely invite customers who wish to have a long-term cooperation to visit our factory and have business discussion.
To give you a general idea of our products, we are enclosing our catalog for your reference to your email box after your permission. For more information about our company and products, you may also visit our web site: tobemac.en.made-in-china.com
Note: Best price according to quantity and engine option. Pls contact us for more information.

Operating weight	kg	1800
Bucket capacity	M3	0.06
The height of the cabin	mm	2270
Wheel base	mm	1230
Tread	mm	820
Mini Ground Clearance	mm	210
Turning Radius	mm	1125
Operating Range	Unit	Specifications
Min. Digging height	mm	3365
Max. Dumping height	mm	2385
Max. Digging depth	mm	2050
Max.vertical digging depth	mm	1955
Working ranges	mm	3860
Min.Swing radius	mm	1125
Max.Ground Clearance of bulldozing plate	mm	230
Max.Depth of bulldozing plate	mm	275
Performance Parameters	Unit	Specifications
Swing Speed	rpm	10-12
Max. Climb Angle	°	35
Max. Breakout force (Bucket)	kN	14
Max. Breakout force (Boom)	kN	10
Engine	Unit	Specifications
Engine Brand /Model		LAIDONG / 385
Rated Power	Kw	18.1
Rated Speed	rmp	2200
Hydraulic Pressure	MPa	16

3.Main Features
1. Low noise, low fuel consumption and low emission.
2. Adopted world class Kawasaki hydraulic system, high efficiency and reliability.
3. Hydraulic control system is used with multi-power modes to adapt to different operations.
4. Superior excavation performance, design of enhanced structural parts, uses high tensile steel plate
5. Power system and hydraulic system cooperate well to improve 10% dig power.
6. Optional extension track to improve stability.
7. Boom deflexion meet narrow work condition.
8. Optional hydraulic quick hitch, hammer, ripper and drill.
4.Production Flow
5.Our service
1.Installation, debugging, operators trainning;
2.Maintanence:
A. when trainning your operators, our engineers will give them advice on how to operate the machines correctly;
B. we will send you the operation manual which can help you operate the machins properly, it can also help you to solve the common problems;
C. Call us at any time if you have problems about our concrete mixers;
D. If needed, we will send engineers to your site to solve your problems.
3.Providing some documents needed for your customs clearance, like commercial invoice, packing list, certificate of origin etc;
4.Spare parts supply;
6.Contact with us!
Mr. LEO

----------------------------------------------
HANGZHOU TOB ENGINEERING MACHINERY CO.,LTD.
ADD: HUTANG INDUSTRIAL PARK ,DACIYAN TOWN,JIANDE CITY,ZHEJIANG PROVINCE,CHINA

---
