Factory-Manufactured 2-Phase Motor Hybrid Stepping Motor for Printers

Product Description

Below are only some typical models, for more information or a customed motor, pls contact us.

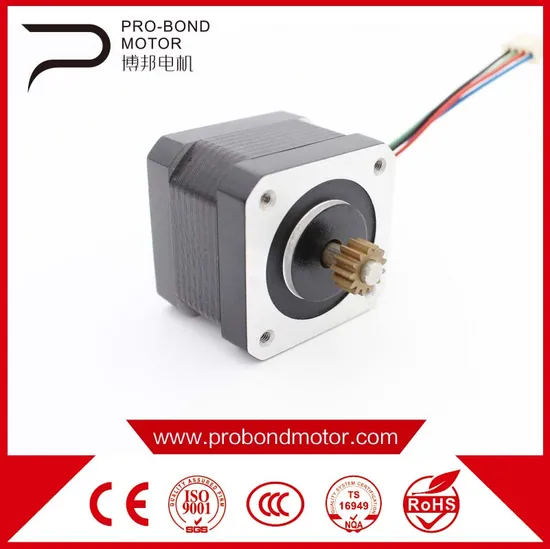

42BYG Hybrid Step Motor
Basic Info
Item			Data
Step Angle			1.8°
Tem Rise			60K max
Working Tem			(-20ºC~+70ºC)
Insulation Resistance			100MΩ min 500VDC
Surge Test			500VAC for 1min
Radial Clearance			0.O2max(450g load)
Axial Clearance			0.O8max(450g load)
Max Radial Pressure			10N(20mm from the flange)
Max Axial Pressure			25N
Insulation Class			E

The Specification of 20mm electric mini stepper dc motor with widely useful
PN	Rated Voltage	Step Angle	Length	Current	Resistance	Inductance	Torque	Lead wire QTY	Positive inertia	Weight
	V DC	(°)	(L)mm	A	Ω	mH	mN.m	No.	g.cm²	Kg
42BYGH0001ND	8.8	1.8	20	0.4	22	18	110	4	14.5	105
42BYGH903NC	9.6	1.8	20	0.3	32	42	190	4	31	160
42BYGH004	11.6	1.8	20	0.4	29	33	260	4	41	195
42BYGH605B	11.8	1.8	20	0.28	42	21	150	4	41	195
42BYGH031	10	1.8	20	0.4	25	15.5	250	4	41	195
42BYGH105	12.6	1.8	20	0.6	21	27	410	4	50	225
42BYGH025	12	1.8	20	0.4	30	18.5	220	4	41	220
42BYGH204	7.2	1.8	20	0.4	18	22	310	4	57	250
42BYGH220	4.8	1.8	20	0.4	12	19	270	4	44	250
42BYGH511	10.4	1.8	20	0.4	26	51	460	4	64	275
42BYGH0430	7.2	1.8	20	0.4	18	29	360	4	57	270
42BYGH804	6.6	1.8	20	0.4	16.5	40	420	4	64	300

Probond motors designs brush, brushless, stepper, hysteresis and linear motors to meet customers requirements.Our motors use standard and special components with customer selected torque/speed requirements that can be modified to your applications.The AC/DC gear motors are based upon to distinct magetic circuits that optimize motor design for high speed low torque and low speed high torque.These motors give you lower rotational losses, excellent thermal transfer, interchangeable end caps, easily sealed. Options include connectors, encoders, shaft modifications, dimensional changes, etc.Probond motor owns professional sales team and engineer team with more than 10 years experience in motor industry, based on China mainland handling overseas business for years, we know your needs better than others.Probond Sonicare Toothbrush Motor and Thermostatic Valve Hysteresis Motor are our hot products on sell in 2017 with highly quality level and competitive price.Please kindly contact us to get a catalogue.
Contact
Changzhou Probond Motor Co., Ltd.
Contact Person: Miss Lulu Guo

Website: http://probondmotor.en.made-in-china.com

---
