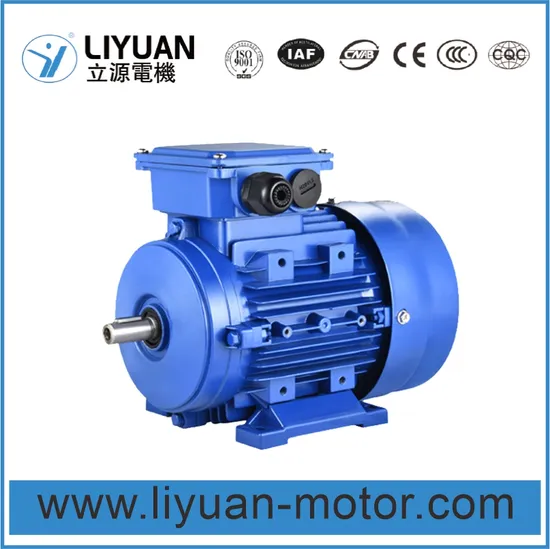

Ie1 Ie2 Ie3 Ms Series 0.5HP 1HP 1.5HP 2HP 3HP 4HP 5HP 7.5HP 10HP Three 3 Phase AC Induction Asynchronous Electric Motor

Product Description

Ie1 Ie2 Ie3 Ms Series 0.5HP 1HP 1.5HP 2HP 3HP 4HP 5HP 7.5HP 10HP Three 3 Phase AC Induction Asynchronous Electric Motor Recommendation
Product Description Applications: Can be applied in the machines where continuous duty is required, typical applications like
Pumps Fans Compressors Lifting equipment Production industry General Description Frame sizes: 63 to 355M/L Rated output: 0.12 to 400kW Voltage: 380V Frequency: 50Hz or 60Hz Poles: 2, 4, 6, 8,10 Efficiency levels: IE1,IE2, IE3 Duty Cycle: S1 Enclosure: IC411 - TEFC Insulation class: F Degree of protection: IP55/56/65/66 Service Factor: 1.0 Regreasing system: Frame 250 and above Optional Features Electrical: Insulation Class:H Thermal Protection: PTC Thermistor, Thermostat or PT100 Mechanical: Others mountings Protection Degree:IP56, IP65, IP66 Sealing:Lip seal, Oil seal Space Heater, Double shaft ends Drain Hole

Model	kw	Torque (N.m)	Current (A)	Speed (rpm)	Eff (%)	Power Factor (Φ)	Tst/Tn	Tmax/Tn	Ist/In
MS561-2	0.09	0.32	0.46	2680	45.0	0.65	2.2	2.4	6
MS562-2	0.12	0.43	0.59	2660	45.0	0.69	2.2	2.4	6
MS563-2	0.18	0.63	0.72	2750	52.8	0.72	2.2	2.4	6
MS631-2	0.18	0.63	0.69	2710	52.8	0.75	2.2	2.4	6
MS632-2	0.25	0.88	0.84	2710	58.2	0.78	2.2	2.4	6
MS633-2	0.37	1.30	1.13	2710	63.9	0.78	2.2	2.4	6
MS711-2	0.37	1.29	1.12	2730	63.9	0.79	2.2	2.4	6
MS712-2	0.55	1.90	1.54	2760	69.0	0.79	2.2	2.4	6
MS713-2	0.75	2.62	1.93	2730	72.1	0.82	2.2	2.4	6
MS801-2	0.75	2.59	1.93	2770	72.1	0.82	2.2	2.4	6
MS802-2	1.1	3.79	2.68	2770	75.0	0.83	2.2	2.4	6
MS803-2	1.5	5.12	3.56	2800	77.2	0.83	2.2	2.4	6
MS90S-2	1.5	5.04	3.52	2840	77.2	0.84	2.2	2.4	6
MS90L1-2	2.2	7.40	4.94	2840	79.7	0.85	2.2	2.4	6
MS90L2-2	3	10.09	6.52	2840	81.5	0.86	2.2	2.4	6
MS100L1-2	3	10.09	6.43	2840	81.5	0.87	2.2	2.3	7
MS100L2-2	4	13.40	8.41	2850	83.1	0.87	2.2	2.3	7.5
MS112M1-2	4	13.26	8.41	2880	83.1	0.87	2.2	2.3	7.5
MS112M2-2	5.5	18.26	11.2	2880	84.7	0.88	2.2	2.3	7.5
MS112L-2	7.5	24.53	15.1	2920	86.0	0.88	2.2	2.2	7.5
MS132S1-2	5.5	18.11	11.2	2900	84.7	0.88	2	2.2	7.5
MS132S2-2	7.5	24.53	15.1	2920	86.0	0.88	2	2.2	7.5
MS132M1-2	9.2	29.99	18.3	2930	86.0	0.89	2	2.2	7.5
MS132M2-2	11	35.85	21.2	2930	87.6	0.9	2	2.2	7.5
MS132LC-2	15	48.72	28.2	2940	88.7	0.91	2	2.2	7.5
MS160M1-2	11	35.73	21.2	2940	87.6	0.9	2	2.3	7.5
MS160M2-2	15	48.72	28.2	2940	88.7	0.91	2	2.3	7.5
MS160L-2	18.5	60.09	34.6	2940	89.3	0.91	2	2.3	7.5
MS561-4	0.06	0.43	0.32	1320	48.5	0.59	2.3	2.4	6
MS562-4	0.09	0.65	0.45	1320	50.0	0.61	2.3	2.4	6
MS563-4	0.12	0.87	0.58	1320	50.0	0.63	2.2	2.4	6
MS631-4	0.12	0.85	0.57	1350	50.0	0.64	2.2	2.4	6
MS632-4	0.18	1.27	0.74	1350	57.0	0.65	2.2	2.4	6
MS633-4	0.25	1.77	0.94	1350	61.5	0.66	2.2	2.4	6
MS711-4	0.25	1.77	0.86	1350	61.5	0.72	2.2	2.4	6
MS712-4	0.37	2.58	1.15	1370	66.0	0.74	2.2	2.4	6
MS713-4	0.55	3.81	1.59	1380	70.0	0.75	2.2	2.4	6
MS801-4	0.55	3.83	1.59	1370	70.0	0.75	2.2	2.4	6
MS802-4	0.75	5.19	2.03	1380	72.1	0.78	2.2	2.4	6
MS803-4	1.1	7.56	2.85	1390	75.0	0.78	2.2	2.4	6
MS90S-4	1.1	7.50	2.82	1400	75.0	0.79	2.2	2.4	6
MS90L1-4	1.5	10.23	3.70	1400	77.2	0.8	2.2	2.4	6
MS90L2-4	2.2	15.01	5.24	1400	79.7	0.81	2.2	2.3	7
MS100L1-4	2.2	14.80	5.18	1420	79.7	0.81	2.2	2.3	7
MS100L2-4	3	20.18	6.38	1420	81.5	0.82	2.2	2.2	7
MS100L3-4	4	26.71	8.90	1430	83.1	0.83	2.2	2.2	7
MS112M-4	4	26.71	8.8	1430	83.1	0.83	2.2	2.2	7
MS112L-4	5.5	36.48	11.8	1440	84.7	0.84	2.2	2.2	7
MS132S-4	5.5	36.22	11.7	1450	84.7	0.85	2.2	2.2	7
MS132M-4	7.5	49.40	15.6	1450	86.0	0.85	2.2	2.2	7
MS132L1-4	9.2	60.18	19.1	1460	86.0	0.85	2.2	2.2	7
MS132L2-4	10	65.41	20.4	1460	87.6	0.86	2.2	2.2	7
MS132L3-4	11	71.95	22.2	1460	87.6	0.87	2.2	2.2	7.5
MS160M-4	11	71.95	21.9	1460	87.6	0.87	2.2	2.2	7.5
MS160L-4	15	98.12	29.5	1460	88.7	0.86	2.2	2.2	7.5
MS631-6	0.09	1.02	0.59	840	38.3	0.61	2	2	3.5
MS632-6	0.12	1.35	0.77	850	38.3	0.62	2	2	3.5
MS711-6	0.18	1.95	0.92	880	45.5	0.66	1.6	1.7	4
MS712-6	0.25	2.65	1.04	900	52.1	0.7	2.1	2.2	4
MS713-6	0.37	3.97	1.37	890	59.7	0.72	2	2.1	4
MS801-6	0.37	3.93	1.35	900	59.7	0.72	1.9	1.9	4
MS802-6	0.55	5.84	1.77	900	65.8	0.72	2	2.3	4
MS803-6	0.75	7.96	2.26	900	70.0	0.73	2	2.3	4
MS90S-6	0.75	7.79	2.26	920	70.0	0.76	2.2	2.2	5.5
MS90L1-6	1.1	11.36	3.14	925	72.9	0.76	2.2	2.2	5.5
MS100L-6	1.5	15.16	3.99	945	75.2	0.76	2.2	2.2	6
MS112M-6	2.2	22.00	5.66	955	77.7	0.76	2.2	2.2	6
MS132S-6	3	29.84	7.53	960	79.7	0.77	2	2	6.5
MS132M1-6	4	39.79	9.82	960	81.4	0.77	2	2	6.5
MS132M2-6	5.5	54.71	13.1	960	83.1	0.8	2	2	6.5
MS132L-6	7.5	74.61	17.5	960	84.7	0.79	2	2	6.5
MS160M-6	7.5	74.61	16.8	960	84.7	0.81	2	2.2	6.5
MS160L-6	11	109.43	24.5	960	86.4	0.81	2	2.2	6.5

Company Profile
Why choose us? Guarantee of our motors:18-24months
General elivery time:15-30days
Price of motors: Most reasonable during your all suppliers
Packing:Strong export cartons/wooden case/plywood cases/pallets
Payment way with your order: T/T,LC,DP,etc
Sample order: Acceptable
Shipment way: Sea ship,Air flight,Express way,Land transfer way.
Certifications
We have our own design and development team, and we can provide customers with standard AC motors. We can also customize single-phase/three-phase motors according to customer special needs. At present, our main motor products cover three-phase high-efficiency motors, general-purpose three-phase motors, single-phase motors, etc.
Main motor range: IE3/YE3, IE2/YE2, IE1/Y2, Y, YS, MS, YC, YL, YY, MC, MY, ML motors.
American standard NEMA motors
Russian standard GOST ANP motor
Taiwan type AEEF motor, YC motor
Certificates and more COMPANY information please go to "ABOUT US"
---------------------------------------------------------------------------------------------------------------------------
Welcome to contact us directly...
