Low Ratio Package Yarn Dyeing Machine

Product Description

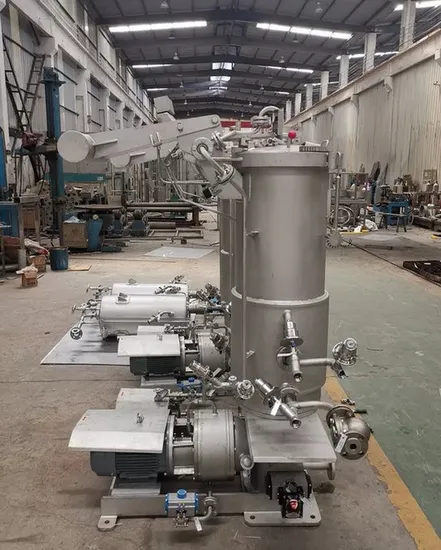

HTHP PACKAGE YARN DYEING MACHINE
HPD series is suitable for dyeing and pre-treatment of polyester and blended package yarn under high temperature conditions.It is also suitable for dyeing and pre-treatment of package yarn of cotton, hemp, acrylic, wool and other fibers under normal temperature conditions.Replace different dyeing carrier,It can be used for dyeing and pre-treatment various forms of nylon yarn,hank yarn,all types of tape cords,loose fiber and so on.
TECHNICAL PARAMETERS

Design pressure	0.44 Mpa
Maximum working pressure	0.4 Mpa
Design temperature	140ºC
Maximum working temperature	135 ºC
Heating rate	20-130ºC about 35 minutes (Saturated vapor pressure: 0.7 Mpa)
Cooling rate	130-80ºC about 25 minutes (Cooling water pressure:0.3 Mpa)
Cooling water temperature	5-10 ºC
Liquid ratio	1:5 - 1:6

Standard structure:
Main body of dyeing machine 1set
Dosing tank 1set
Heat Exchanger 1set
Dead weight balancing device 1set
Safty interlock device 1set
Reversal device 1set
Main Pump 1set
Base Frame 1set
Valve group Components 1set
Carrier 1set
Carrier lifting device(More than 500kg) 1set
Main Electrical Cabinet 1set
Inverter Electrical Cabinet 1set
(Motor power more than 4KW)
Random spare parts
Main pump mechanical seal,main pump mechanical seal,cylinder port seal each set.

---
