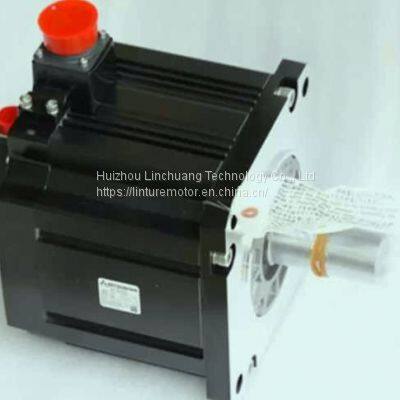

HF-SP301B Motor Of Mitsubishi High Torque Low Rpm Electric Motor

Product Details

Product Description

Product Description
Rated Output::SRated Speed::Power Supply Specification:Brand:Model Item:Plan Of Original:High Light:

11.0kW	2000 RPM
200-230VAC 3-phase	Mitsubishi Servo Motor
HF-SP301B	Japan
ewing machine servo motor,electric servo motor

MITSUBISHI HF-SP301B Product information and technical parameters:
Brand: MITSUBISHI
Name: Medium inertia power servo motor
Model: HF-SP301B
Servo motor series: medium inertia, medium power.
Rated output: 3.0kw.
Rated speed: 1000r/min.
Electromagnetic brake: with.
Shaft end specification: Standard (straight axis).
Characteristics: medium inertia has two types of low speed and high speed, suitable for different applications.
IP level: IP67.
Application example:
1, material handling system.
2, industrial robots.
3, X-Y working table.
The protection level of the HF-SP/HF-JP series servo motor is IP67 (except the shaft part).
Motor capacity selection soft (MRZJW3-MOTSZ111E)
Friendly interface design, only in the mechanical description window input constant and operation mode can choose the best servo amplifier,
The servo motor and the regenerative braking options, but also in the selection window in the selection of linear servo motor and direct drive motor.
Characteristic
(1) 10 typical mechanical transmission structure can be used to choose
(2) user defined operating modes (location and speed control)
(3) in the selection process, the feed speed and torque can be displayed in a graphical format.
(4) the calculation process can be displayed
Can easily calculate the power of the servo motor free software!
"MITSUBISHI general purpose AC servo amplifier MELSERVO-J2-Super series.
Rated output: 7.0kw.
Universal interface.
Voltage: 3 phase AC200VAC or single phase AC230V.
Super function, excellent performance.
Super function, excellent performance.
High performance CPU integration, greatly improve product responsiveness MITSUBISHI HF-SP301B.
Due to the application of high performance CPU, so that the response can be greatly improved HF-SP301B
Speed loop frequency response increased to more than 550HZ.
MR-J2-Super series is the best device for high speed positioning applications.
Easy adjustment.
Model adaptive control / advanced real time automatic tuning.
Mechanical analysis function.
Can analysis of the frequency characteristics of the mechanical system, the results can be easily set up "mechanical resonance suppression filter"
Mechanical simulation function MITSUBISHI HF-SP301B.
The function can be realized without the actual replacement of the motor. Read mechanical analysis results to simulate the response of the user''s mechanical system. "Servo motor series: low inertia, medium / high power.
Rated output: 9.0kw.
Rated speed: 3000r/min MITSUBISHI HF-SP301B.
Electromagnetic brake: No.
Shaft end specification: Standard (straight axis).
Features: low inertia for high speed / acceleration and deceleration operation occasions.
IP level: IP67.
Application example:
1, food processing machinery.
2, printing machine.
3, injection molding machine (11KW, 15KW).
4, large press machine (11KW, 15KW).
The protection level of the HF-SP/HF-JP series servo motor is IP67 (except the shaft part).
Low inertia of the power servo motor (0.5kW ~ 9kW), the maximum speed: 6000r/min (rated speed: 3000r/min),
Suitable for high frequency positioning and acceleration / deceleration operations, especially for food processing machines and printing machines.
Low inertia, high power, no cooling fan servo motor (11kW and 15kW), maximum speed: 3000r/min (rated speed: 1500r/min).
The motor structure is more compact due to the adoption of the non cooling fan design, and the connnection is reduced by using the power source connector HF-SP301B.
(compared with the HF-LP series servo motor with the same power, the volume is reduced by about 46%, and the weight is reduced by about 34%,
Suitable for high frequency positioning annd acceleration / deceleration operations, especially for injection molding machines and large presses HF-SP301B.
HF-JP703 (4) /903 (4) maximum speed: 5000r/min.
