HDPE Juice Drink Bottle Extrusion Blow Molding Making Machine

Product Description

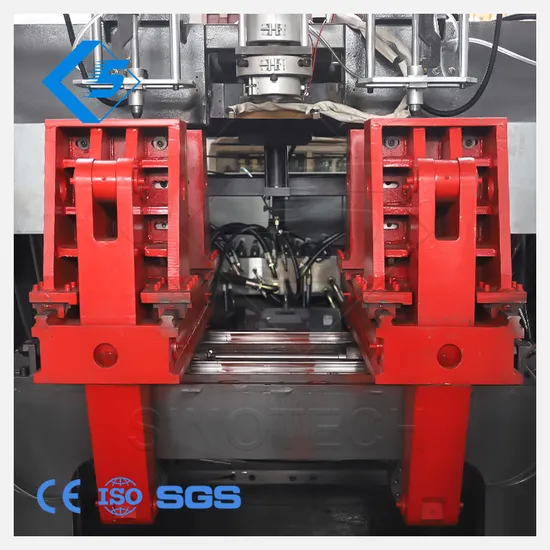

HDPE juice drink bottle extrusion blow molding making machine
Tcy70ii series blow molding machine is with the features of low cost, energy save and high quality. Suitable for oil bottles, shampoo bottles, chemical bottles, milk bottles and related product not over 5L. Adopt high quality mico computer PLC controler and temperature controler from mitisubishi japane to ensure the good funciton of the mico system equip with sliencer and oiling system to reduce noise and friction.
Small Bottle Blow Molding Machine Milk Bottle Extrusion Machine:
1). Speciliazed in Small Bottle Blow Molding Machine Milk Bottle Extrusion Machine of the engineer for more than 15 years experience.
2). With deflashing system on mould or equiped on the machine itself.
3). More than 20% higher effiency than others
4). Imported brand components
5). Certificate: ISO9001. CE, SGS.
2. Main Characteristics for Small Bottle Blow Molding Machine Milk Bottle Extrusion Machine:
1). Single station, one layer, 70mm screw with 13.8kw heating power for material of HDPE, PP, ABS and etc.
2). Power supply: 380VAC, 50Hz (depending on client's county ).
3). Different Die Head for Choosing:
One die head (5L): 5L bottle around 130 bottles per hour
Two die head (2L): 2L bottle around 220 bottles per hour
4). Center Distance: Two Die head: 160mm, Three Die head: 110mm, tetra-die head: 85mm
5). Auto matic Deflashing system: Neck/ handle/ bottom deflashing. Fully automatic.
6). MOOG 100 Points Parison Controller (Optional)
Some parameters for this Small Bottle Blow Molding Machine Milk Bottle Extrusion Machine:
Screw diameter: 70mm
Platen size: 330*370mm
Platen open stroke: 200-500mm
Mould moving stroke: 420mm
Mould thickness: 205mm
Oil pump power: 22kw
Max pressure: 12MPa
Screw L/D Ratio: 26/1
Plasticizing capacity: 70kg/h
Extruder heating capacity: 13.8kw
Driving motor for extruder: 15kw
Number of heating zone: 3 zones
Power of die heating: 5.7kw
3. Basic working theory for this Small Bottle Blow Molding Machine Milk Bottle Extrusion Machine:
This kind of Small Bottle Blow Molding Machine Milk Bottle Extrusion Machine blow molding machine is using PLC control system, operating manual in English, pneumatic operated, clamping by hydraulic cylinders actuated by pneumatic primary cylinders. Moreover, it equips with deflashing system, resulting in saving time and manual cost for clients.
Main parameter of this machine:

Specifications		TCY70II
Material		HDPE
Max container volume	L	5
Number of die	Set	1
Number of station	Set	2
Output(dry Cycle)	Pc/hr	500*2
Dimension(L*W*H)	M	3.53*2.25*2.6
Weight	Ton	7.5
Clamping Unit
Clamping force	KN	70
Platen opening stroke	MM	188-538
Platen size	MM	338*430
Max mould size(W*H)	MM	360*450
Mould thickness	MM	190-320
Power
Max drive	KW	27.5
Total power	KW	47.5
Fan power for screw	KW	0.48
Air pressure	Mpa	0.7
Air consumption	m³/min	0.9
Average energy consumption	KW	23
Extruder system
Screw diameter	MM	70
Screw L/D ratio	L/D	24
Plasticizing capacity	Kg/hr	70
Number of heating zone	Zone	3
Extruder heating power	KW	14.2
Extruder driving power	KW	22
Die head
Number of heating zone	Zone	3..5
Power of die heating	KW	5.7
Max die-pin diameter	MM	150
